Question: QUESTION 7 For the assembly language program and memory map given below, ly Memory Loc Machine Code Assembly LOADI RO, -3 0 LOADI R1, -2

QUESTION 7 For the assembly language program and memory map given

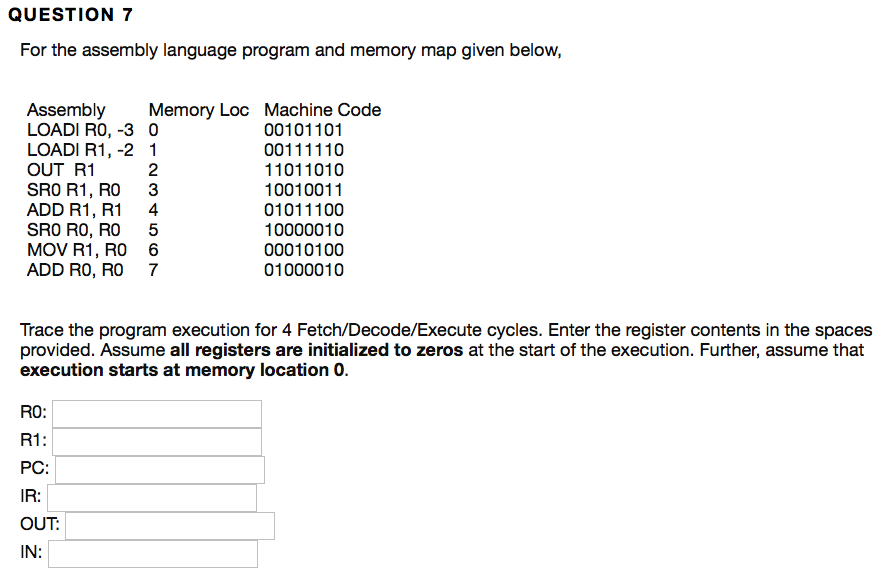

QUESTION 7 For the assembly language program and memory map given below, ly Memory Loc Machine Code Assembly LOADI RO, -3 0 LOADI R1, -2 1 OUT R1 SRO R1, RO3 ADD R1, R14 SRO RO, RO5 MOV R1,RO 6 ADD RO, RO 7 00101101 11011010 10010011 01011100 10000010 00010100 01000010 2 Trace the program execution for 4 Fetch/Decode/Execute cycles. Enter the register contents in the spaces provided. Assume all registers are initialized to zeros at the start of the execution. Further, assume that execution starts at memory location 0 RO R1: PC IR: OUT IN: QUESTION 7 For the assembly language program and memory map given below, ly Memory Loc Machine Code Assembly LOADI RO, -3 0 LOADI R1, -2 1 OUT R1 SRO R1, RO3 ADD R1, R14 SRO RO, RO5 MOV R1,RO 6 ADD RO, RO 7 00101101 11011010 10010011 01011100 10000010 00010100 01000010 2 Trace the program execution for 4 Fetch/Decode/Execute cycles. Enter the register contents in the spaces provided. Assume all registers are initialized to zeros at the start of the execution. Further, assume that execution starts at memory location 0 RO R1: PC IR: OUT IN
