Question: QUESTION 7 While executing a branch instruction, what will be the value of the control signal to the Mux (multiplexor) in the red box below?

QUESTION 7 While executing a branch instruction, what will be the

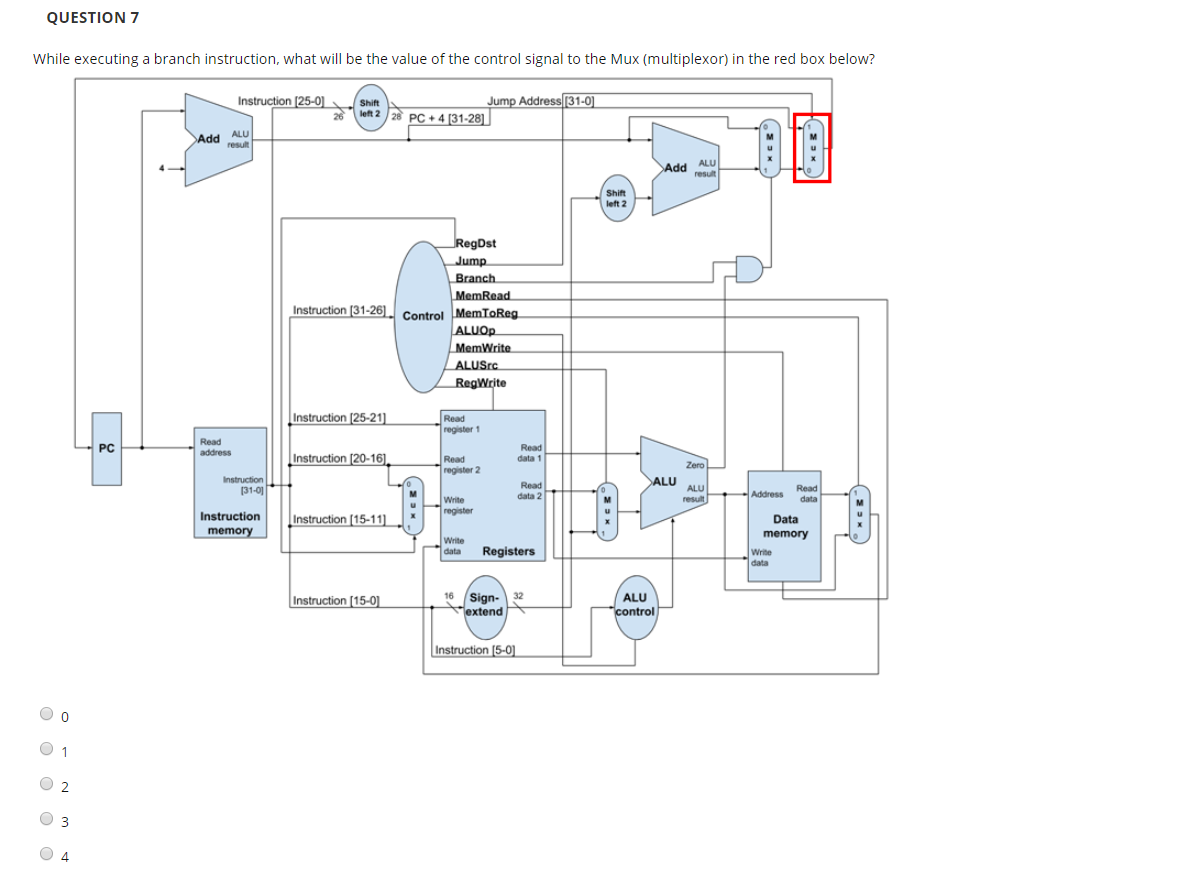

QUESTION 7 While executing a branch instruction, what will be the value of the control signal to the Mux (multiplexor) in the red box below? Addr Shift left 2 PC+41312 left 2 Instruction [31 Control Instruction [25-21 Read register t PC Instruction [20-16 data 1 register 2 LU Address data data 2 InstructionIns Instruction 15-111 | x?mpster Data data Registers Instruction [15 16 Sign-32 ALU 2 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

While executing a branch instruction, what is the value of the control signal to the Mux in the red box below? While executing a branch instruction, what is the value of the control signal to the Mux...

The following diagram represents the single-cycle datapath studied in class with support for a subset of the MIPS arithmetic-logic instructions, plus lw, sw, and beq. Control signals appear...
