Question: QUESTION 8 Consider a pulley system shown below. The coordinate x is the displacement of G . Assume there is no slip between the cord

QUESTION 8

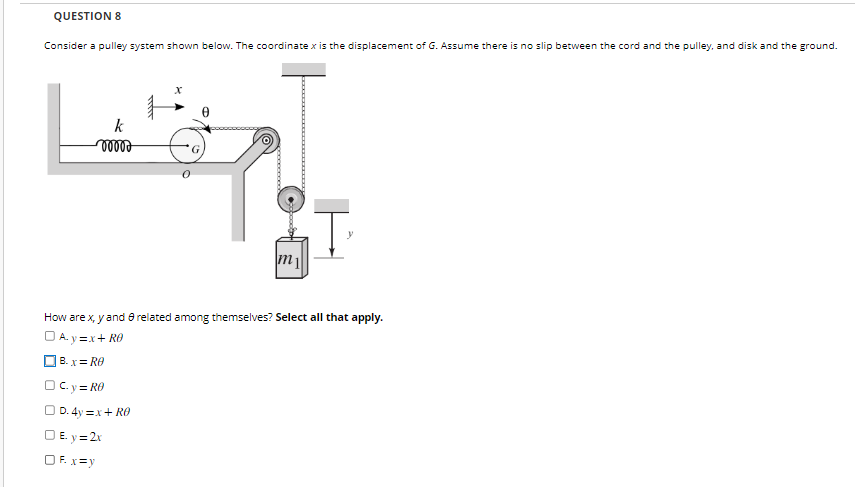

Consider a pulley system shown below. The coordinate x is the displacement of G. Assume there is no slip between the cord and the pulley, and disk and the ground.
How are x,y and related among themselves? Select all that apply.
A.y=x+R
B.x=R
C.y=R
D.4y=x+R
E.y=2x
F.x=y
* THERE ARE MULTIPLE ANSWERS - PLEASE HELP
QUESTION 8 Consider a pulley system shown below.

Step by Step Solution

There are 3 Steps involved in it
