Question: Question 8 Given the processor circuit below, what are the bits of the following items if instruction stt $ t t , $ t t

Question 8

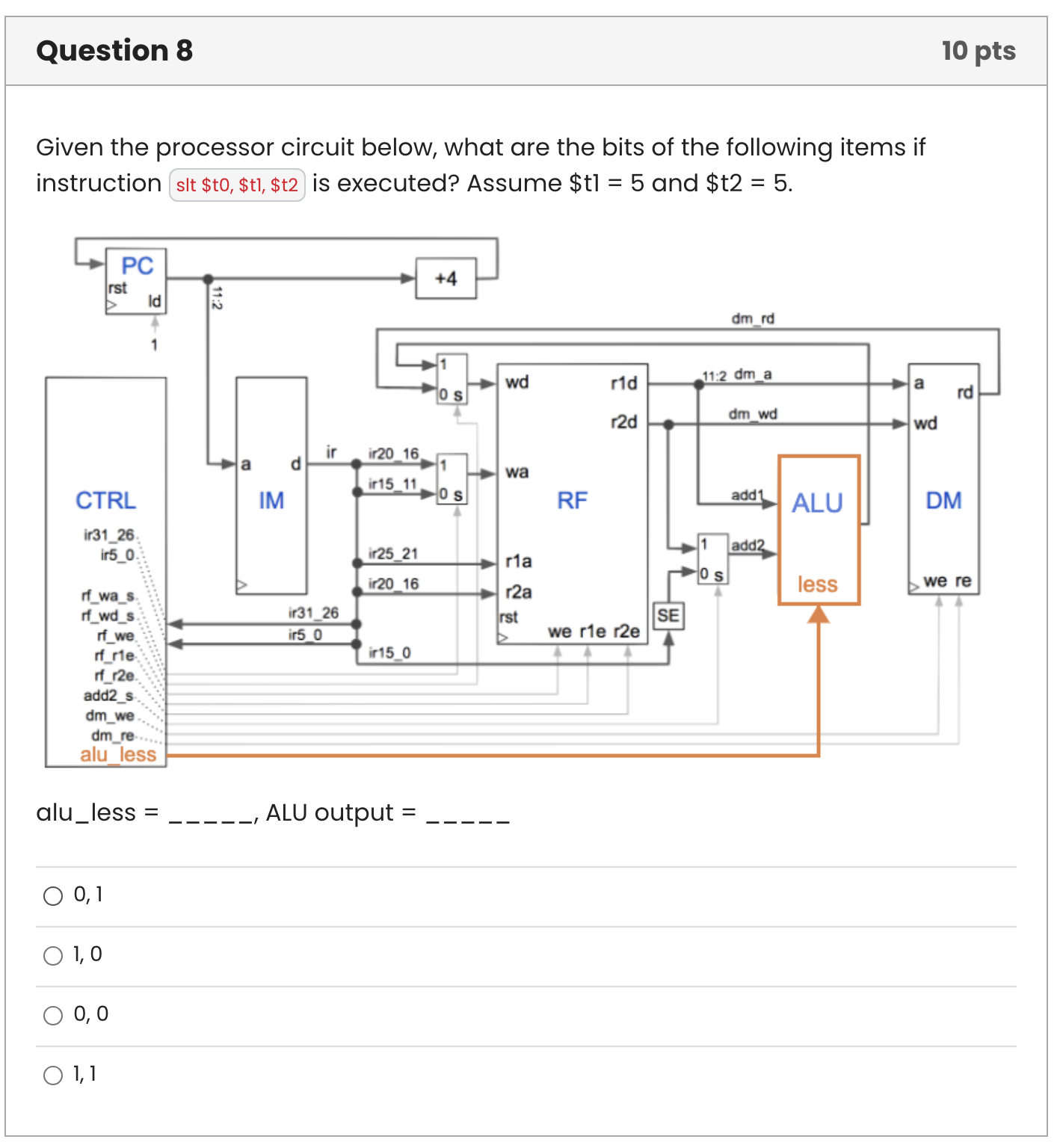

Given the processor circuit below, what are the bits of the following items if
instruction stt $tt,$tt,$t2 is executed? Assume $t1=5 and $t2=5.
alu_less =--, ALU output =
1,1Which storage component variable stores the address of the current instruction in a MIPSzy processor?
Group of answer choices
PC
IM
RF
DM
Question 8 Given the processor circuit below, what are the bits
