Question: Question 8 Select the Boolean expression for the following circuit. W = A ' ( B ' + C ' ) None of these W

Question 8

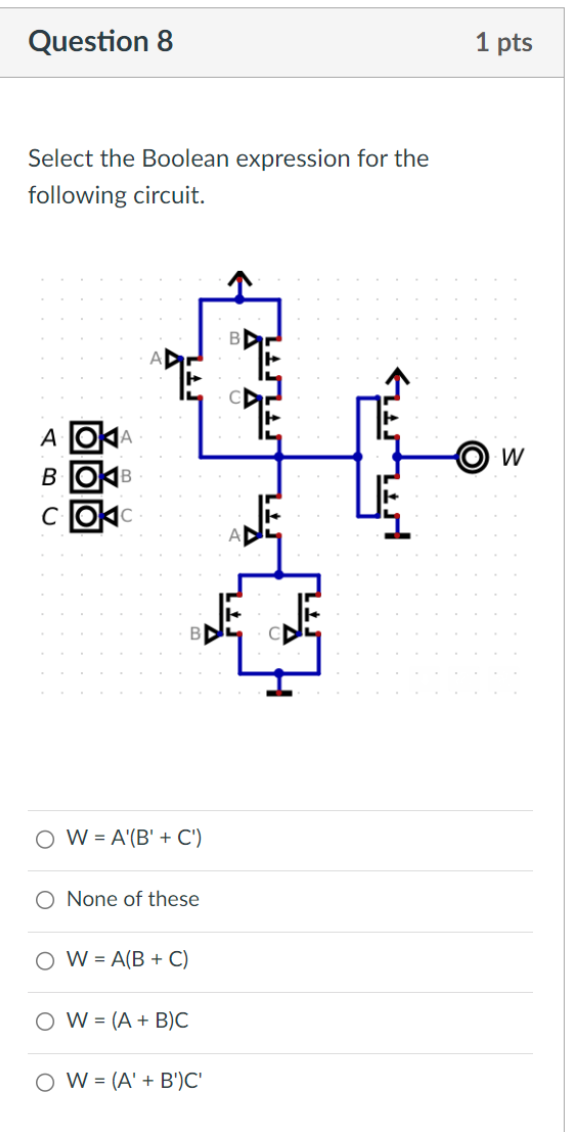

Select the Boolean expression for the
following circuit.
W=A'(B'+C')
None of these
W=A(B+C)
W=(A+B)C
W=(A'+B')C'
Question 8 Select the Boolean expression for the following circuit. W=A'(B'+C')

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
