Question: Question a - Using scale 1 : 1 0 , draw the following mechanism if R A 2 = 4 0 c m , 2

Question

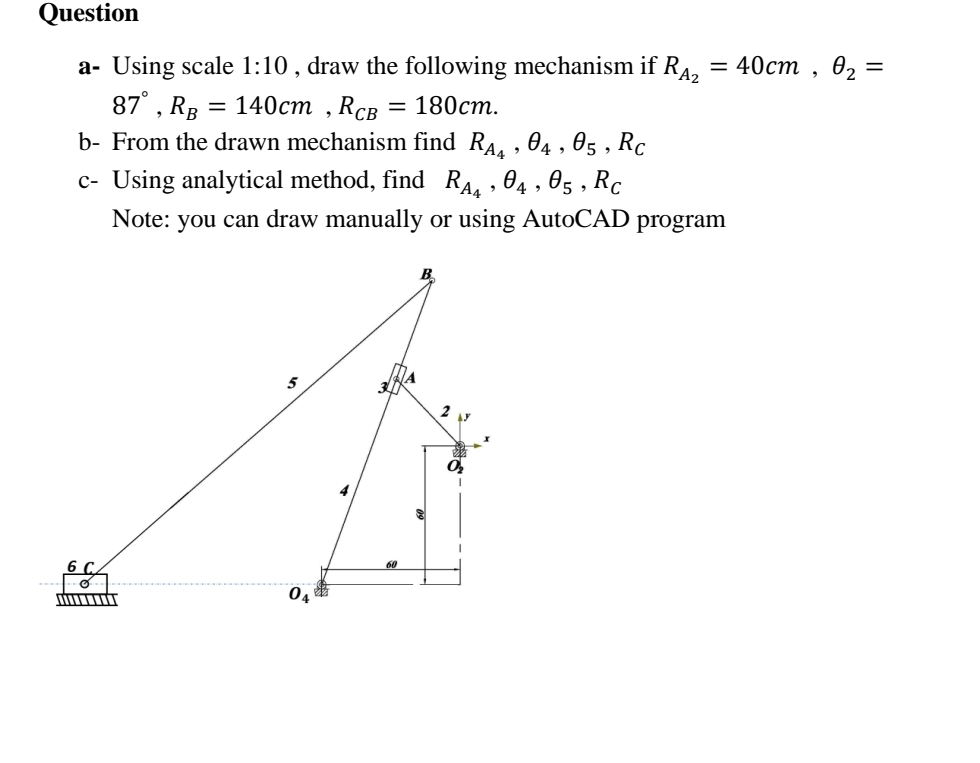

a- Using scale 1:10, draw the following mechanism if RA2=40cm,2=87,RB=140cm,RCB=180cm.
b- From the drawn mechanism find RA4,4,5,RC
c- Using analytical method, find RA4,4,5,RC
Note: you can draw manually or using AutoCAD program
Question a - Using scale 1 : 1 0 , draw the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
