QUESTION: Based on Table 3 in Q7, draw a membership function graph for each system input(s) and output.

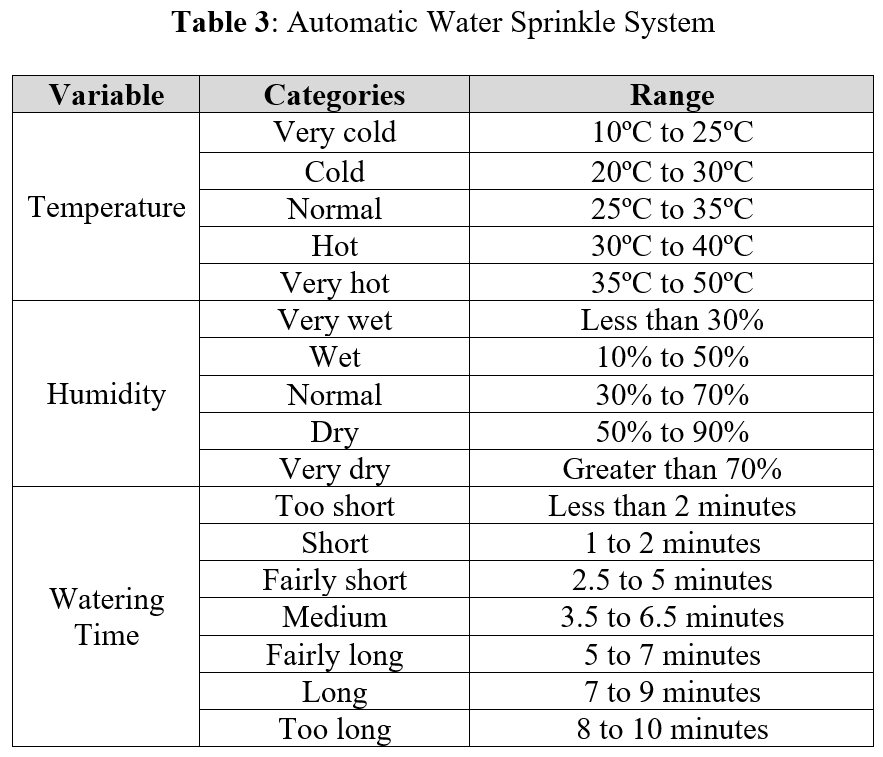

Table 3: Automatic Water Sprinkle System Variable Temperature Humidity Categories Very cold Cold Normal Hot Very hot Very wet Wet Normal Dry Very dry Too short Short Fairly short Medium Fairly long Long Too long Range 10C to 25C 20C to 30C 25C to 35C 30C to 40C 35C to 50C Less than 30% 10% to 50% 30% to 70% 50% to 90% Greater than 70% Less than 2 minutes 1 to 2 minutes 2.5 to 5 minutes 3.5 to 6.5 minutes 5 to 7 minutes 7 to 9 minutes 8 to 10 minutes Watering Time Table 3: Automatic Water Sprinkle System Variable Temperature Humidity Categories Very cold Cold Normal Hot Very hot Very wet Wet Normal Dry Very dry Too short Short Fairly short Medium Fairly long Long Too long Range 10C to 25C 20C to 30C 25C to 35C 30C to 40C 35C to 50C Less than 30% 10% to 50% 30% to 70% 50% to 90% Greater than 70% Less than 2 minutes 1 to 2 minutes 2.5 to 5 minutes 3.5 to 6.5 minutes 5 to 7 minutes 7 to 9 minutes 8 to 10 minutes Watering Time
