Question: Question in diagram is question 1. Question 2) True or false, when measuring a component in a circuit with an ohmmeter, power to the circuit

Question in diagram is question 1. Question 2) True or false, when measuring a component in a circuit with an ohmmeter, power to the circuit must be left on.Question 3) True or false, an ohmmeter must be connected in series with the component being measured.Question 4) True or false, when using an ammeter to measure the current flowing past a point in a circuit, the power circuit must be left on.Question 5) True or false, the effect of adding an extra bulb in parallel to a bulb already in a circuit increases the circuits total resistance.Question 6) Calculate the voltage of a battery made up of four 3.6-V lithium-ion cells connected in series. A. 14.4 VB. 15.0 VC. 10.8 VD. 0.90 V

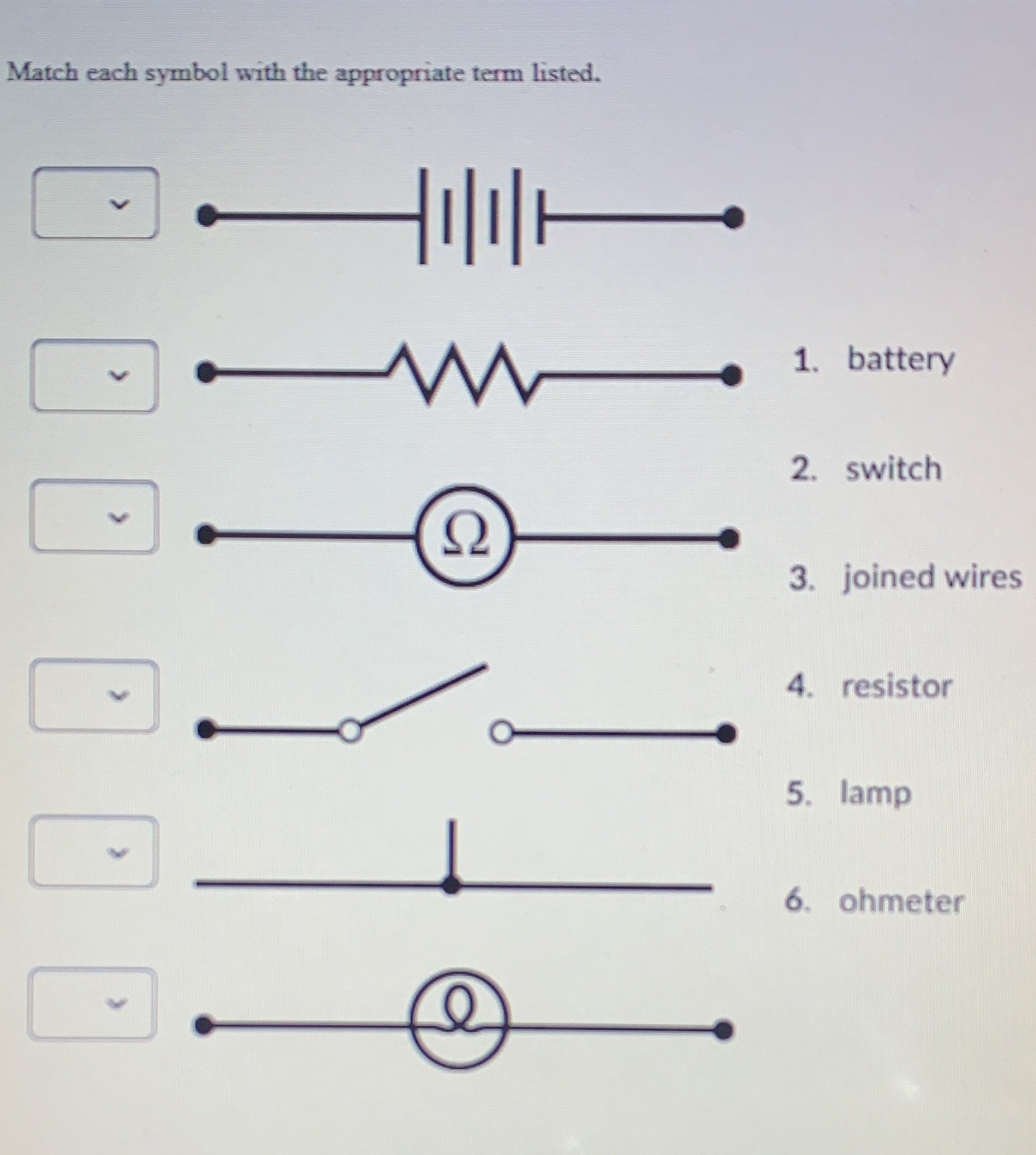

Match each symbol with the appropriate term listed. 1. battery 2. switch 3. joined wires 4. resistor 5. lamp 6. ohmeter
