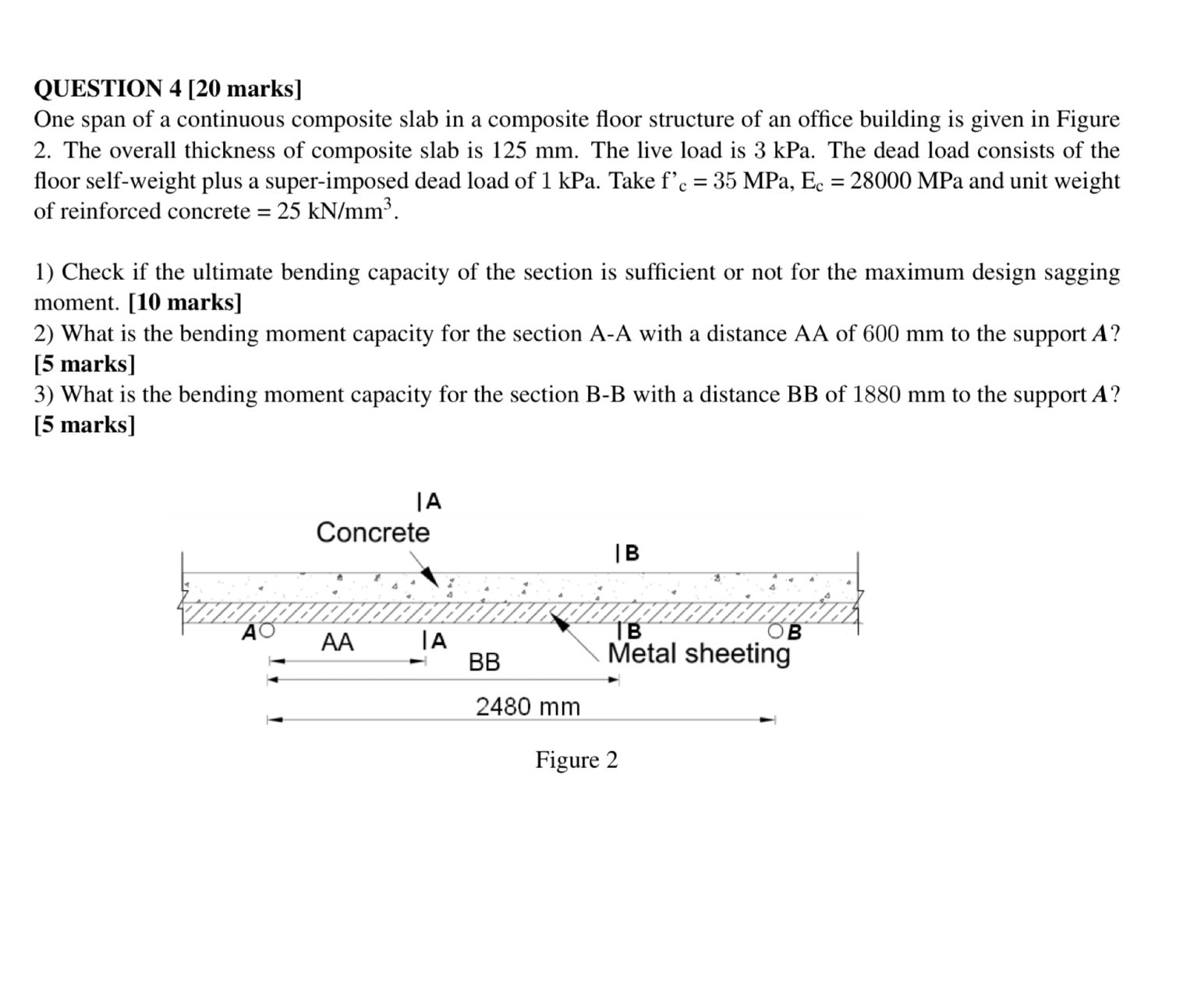

Question: QUESTION marks ] One span of a continuous composite slab in a composite floor structure of an office building is given in Figure 2 .

QUESTION marks]
One span of a continuous composite slab in a composite floor structure of an office building is given in Figure 2. The overall thickness of composite slab is 125 mm . The live load is 3 kPa . The dead load consists of the floor self-weight plus a super-imposed dead load of 1 kPa . Take fc'=35MPa,Ec=28000MPa and unit weight of reinforced concrete =25kNmm3.
Check if the ultimate bending capacity of the section is sufficient or not for the maximum design sagging moment. [10 marks]
What is the bending moment capacity for the section A-A with a distance AA of 600 mm to the support A?[5 marks]
What is the bending moment capacity for the section B-B with a distance BB of 1880 mm to the support A?[5 marks]
QUESTION marks ] One span of a continuous
