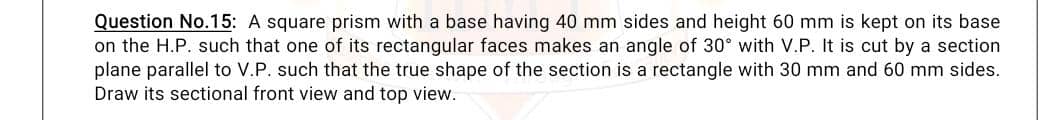

Question No.15: A square prism with a base having 40mm sides and height 60mm is kept on its base
on the H.P. such that one of its rectangular faces makes an angle of 30 with V.P. It is cut by a section
plane parallel to V.P. such that the true shape of the section is a rectangle with 30mm and 60mm sides.
Draw its sectional front view and top view.
