Question: Question No . 2 : The shown inverted slider - crank mechanism has the following dimensions for its links: A B = 5 0 ,

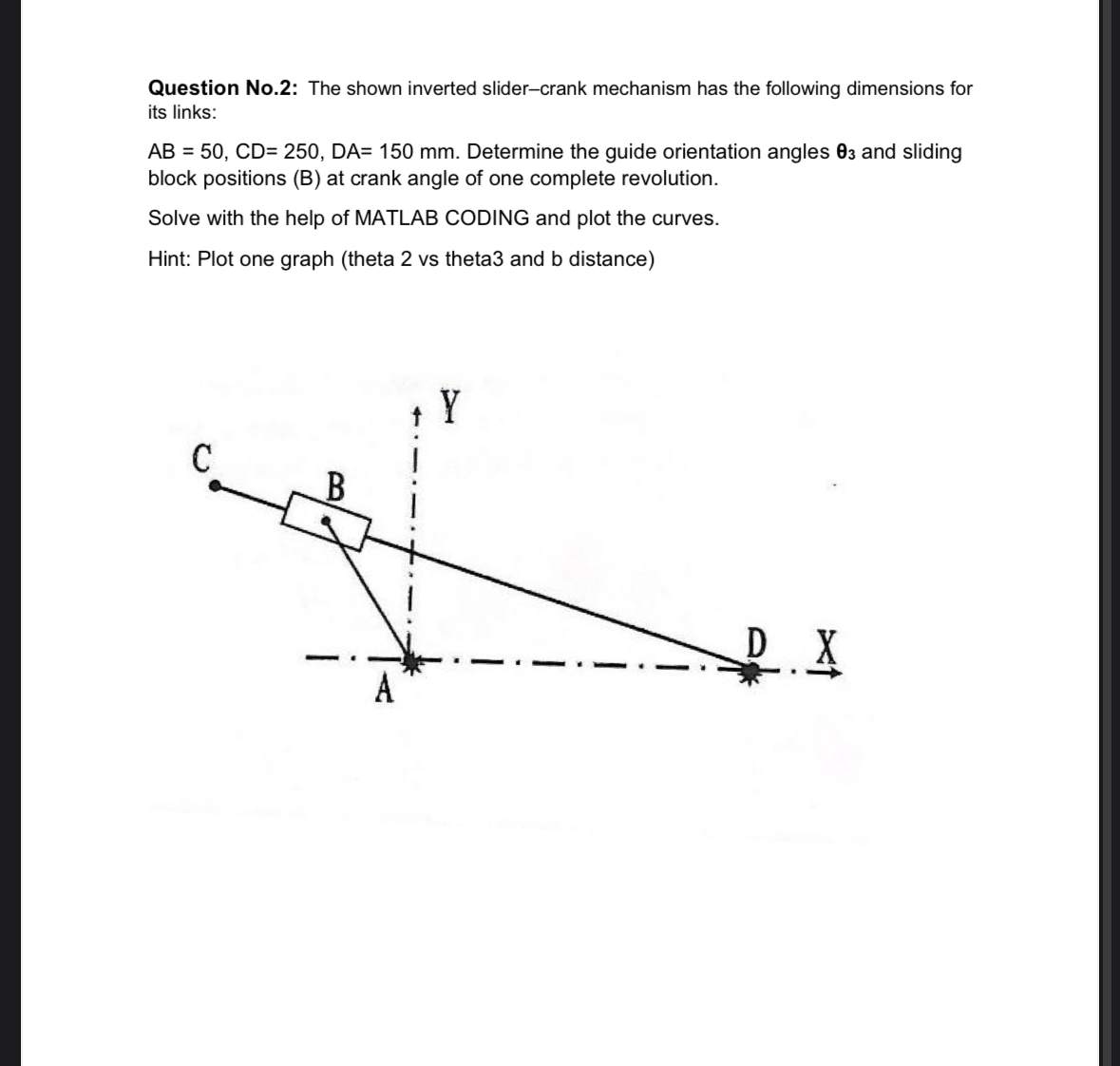

Question No.2: The shown inverted slider-crank mechanism has the following dimensions for its links:
AB=50,CD=250,DA=150mm. Determine the guide orientation angles 3 and sliding block positions (B) at crank angle of one complete revolution.
Solve with the help of MATLAB CODING and plot the curves.
Hint: Plot one graph (theta 2 vs theta3 and b distance)
Question No . 2 : The shown inverted slider -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
