QUESTION

STATE MACHINE DESIGN

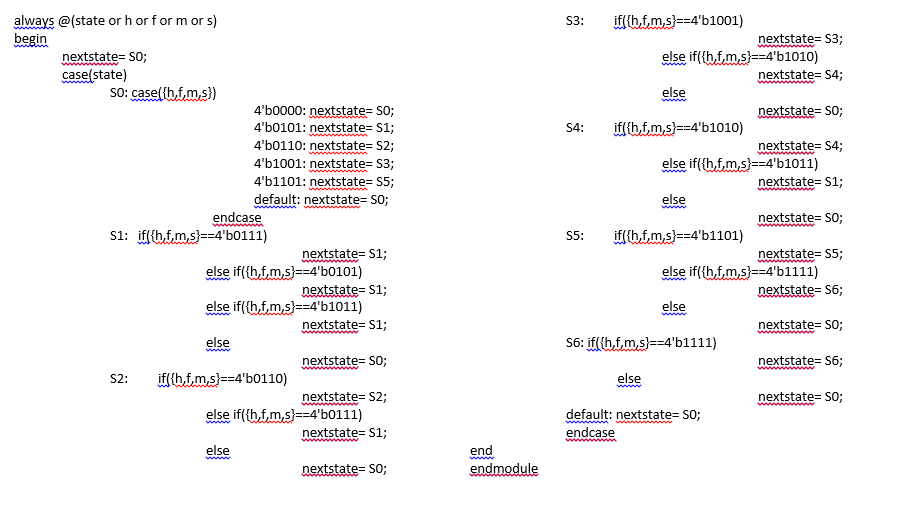

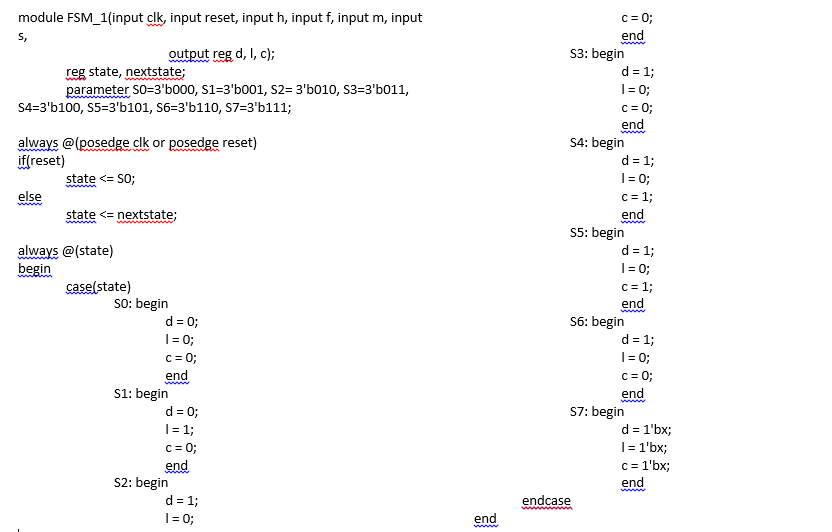

VERILOG CODE

PART - 1

PART 2

TEST-BENCH CODE

PART 1

PART 2

PART 3

WAVEFORM

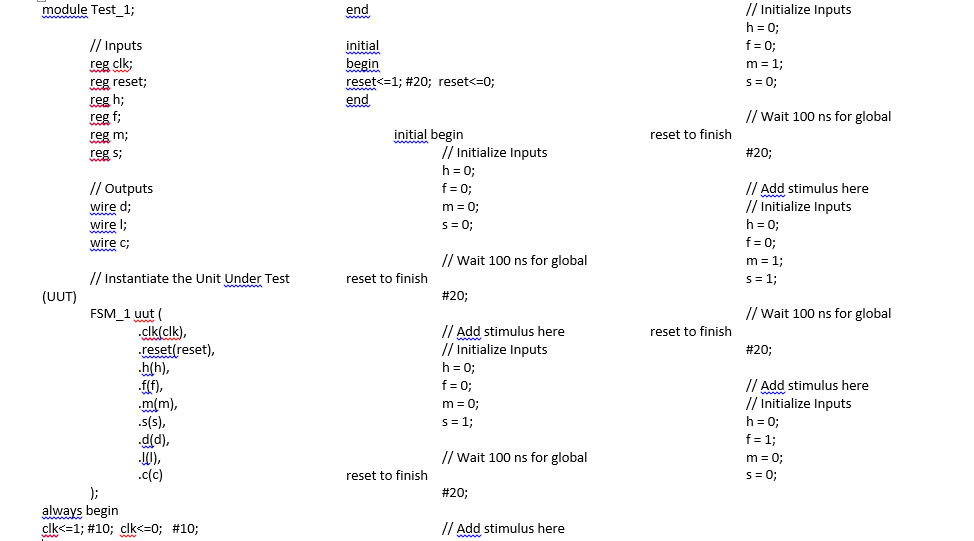

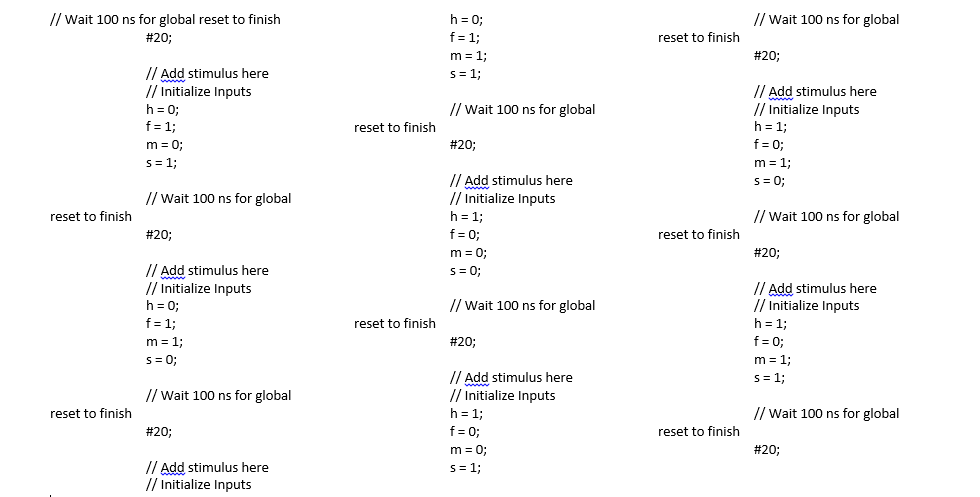

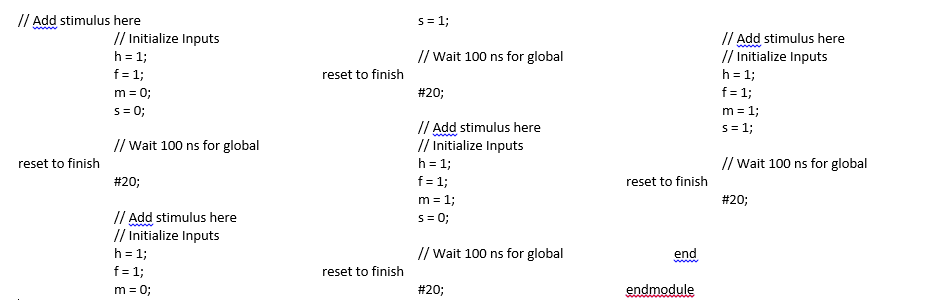

The code above was written to answer the question. However, the code only gives the output for S1. Please correct the error in the code. (If necessary, I can send the code, I had to attach pictures of the code because it took up too much space).

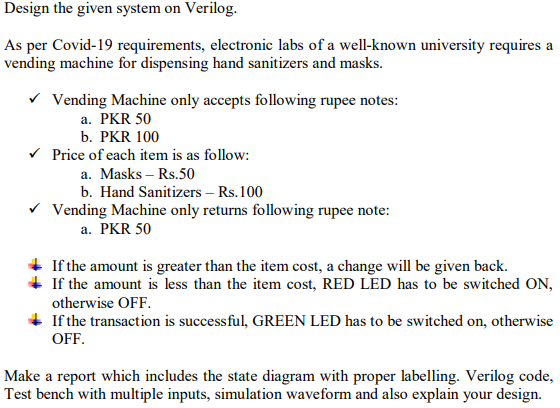

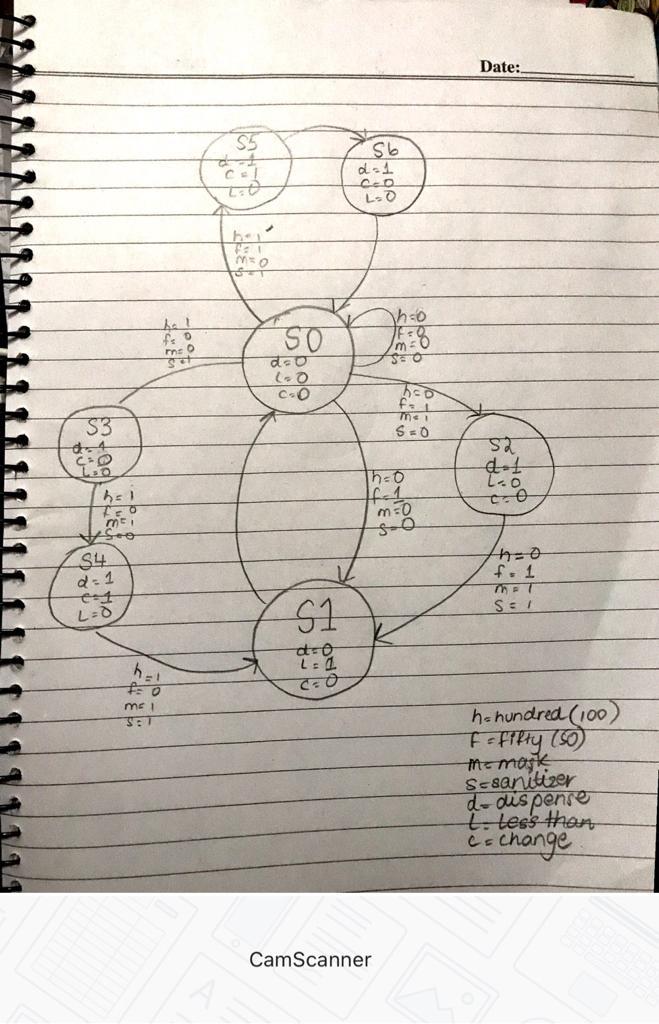

Design the given system on Verilog. As per Covid-19 requirements, electronic labs of a well-known university requires a vending machine for dispensing hand sanitizers and masks. Vending Machine only accepts following rupee notes: a. PKR 50 b. PKR 100 Price of each item is as follow: a. Masks - Rs.50 b. Hand Sanitizers Rs. 100 Vending Machine only returns following rupee note: a. PKR 50 If the amount is greater than the item cost, a change will be given back. If the amount is less than the item cost, RED LED has to be switched ON, otherwise OFF. + If the transaction is successful, GREEN LED has to be switched on, otherwise OFF. Make a report which includes the state diagram with proper labelling. Verilog code, Test bench with multiple inputs, simulation waveform and also explain your design. Date: o Sb d=1 L=0 b Thao ha SO m0 mo et SEO do LO TO fa 1 me S3 S=0 (0 LO hai 150 52 d LO to mo mei See SL 4-0 fo1 d. 1 L=0 SE/ S1 d=0 L: 1 ht Ao ms 1 S: ha hundred (100) F = fifty (50) morts Sceanitizer d-ous pense 1. less than =change CamScanner module FSM_1(input clk, input reset, input h, input f, input m, input S, output reg d, 1, c); reg state, nextstate; parameter SO=3"b000, S1=3'b001, S2= 3'b010, S3=3"b011, S4=3'b100, S5=3'b101, S6=3'b110, S7=3"b111; always @(posedge clk or posedge reset) if(reset) state
