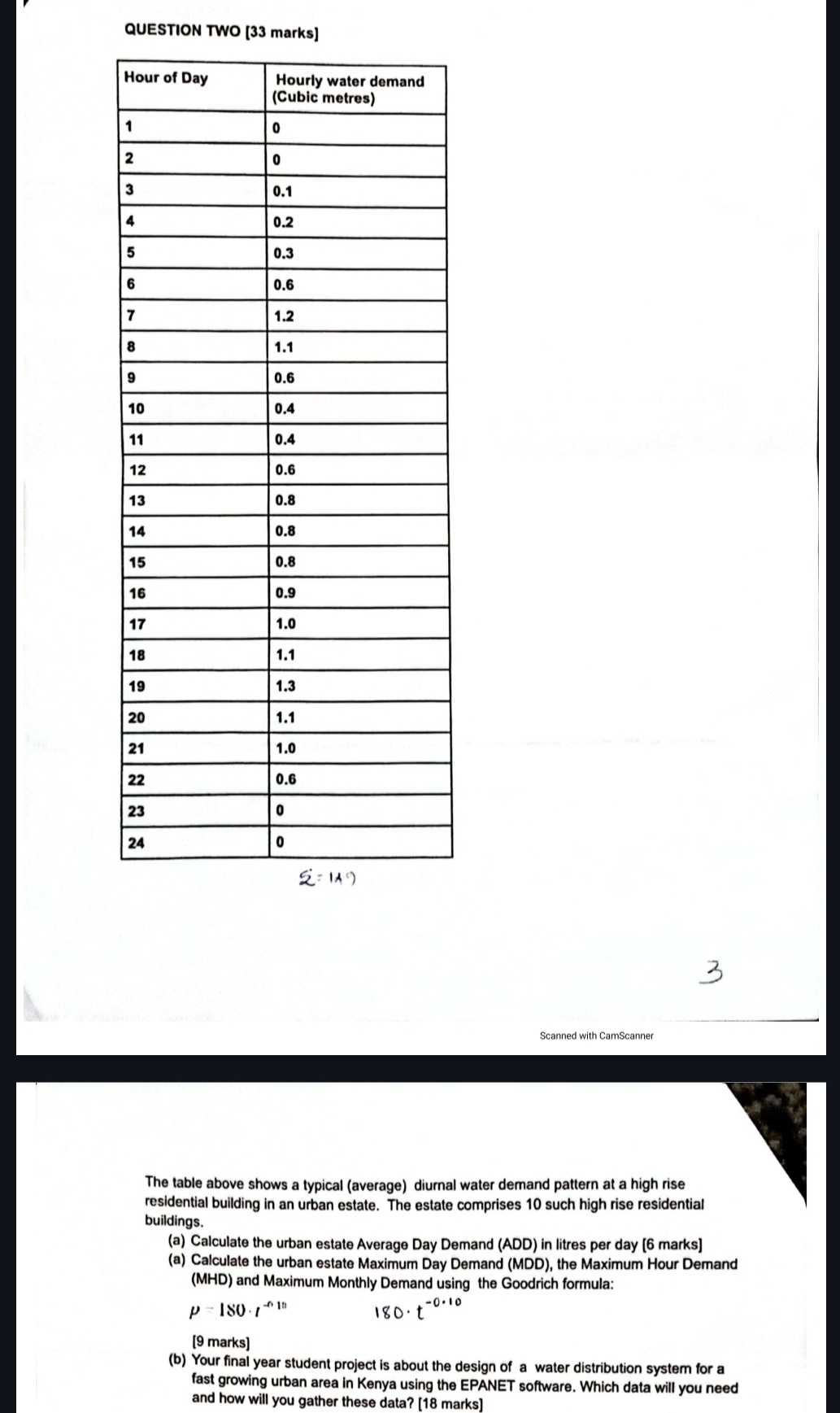

QUESTION TWO $[33$ marks$]$

$\backslash$table$[[$Hour of Day,$\backslash$table$[[$Hourly water demand$],[($Cubic metres$)]]],[1,0],[2,0],[3,0\mathrm{.}1],[4,0\mathrm{.}2],[5,0\mathrm{.}3],[6,0\mathrm{.}6],[7,1\mathrm{.}2],[8,1\mathrm{.}1],[9,0\mathrm{.}6],[10,0\mathrm{.}4],[11,0\mathrm{.}4],[12,0\mathrm{.}6],[13,0\mathrm{.}8],[14,0\mathrm{.}8],[15,0\mathrm{.}8],[16,0\mathrm{.}9],[17,1\mathrm{.}0],[18,1\mathrm{.}1],[21,1\mathrm{.}3],[23,1\mathrm{.}1],[24,1\mathrm{.}0],[,0\mathrm{.}6],[23,0]]$

$2^{}=149$

Scanned with CamScanner

The table above shows a typical $($average$)$ diurnal water demand pattern at a high rise residential building in an urban estate. The estate comprises $10$ such high rise residential buildings.

$($a$)$ Calculate the urban estate Average Day Demand $($ADD$)$ in litres per day $[6$ marks$]$

$($a$)$ Calculate the urban estate Maximum Day Demand $($MDD$),$ the Maximum Hour Demand $($MHD$)$ and Maximum Monthly Demand using the Goodrich formula:

$={180\mathrm{.}1}^{-110},180*t^{-0\mathrm{.}10}$

$[9$ marks$]$

$($b$)$ Your final year student project is about the design of a water distribution system for a fast growing urban area in Kenya using the EPANET software. Which data will you need and how will you gather these data? $[18$ marks$]$
