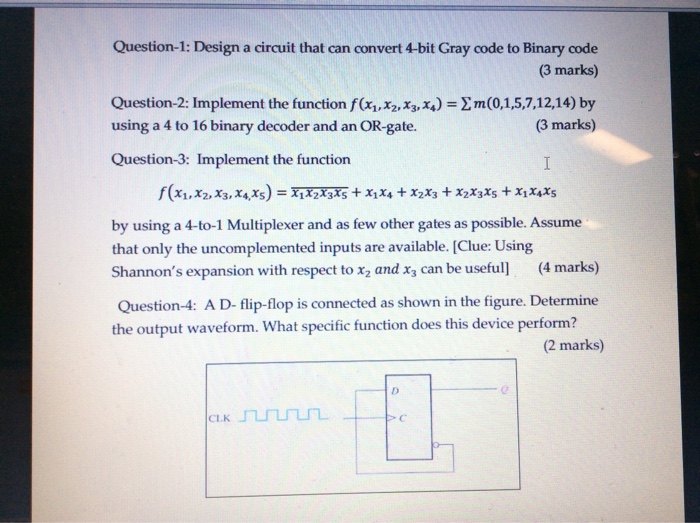

Question: Question-1: Design a circuit that can convert 4-bit Gray code to Binary code (3 marks) Question-2: Implement the function f(x1,XpA3, X.) = m (0,1,5,7, 12,

Question-1: Design a circuit that can convert 4-bit Gray code to Binary code (3 marks) Question-2: Implement the function f(x1,XpA3, X.) = m (0,1,5,7, 12, 14) by using a 4 to 16 binary decoder and an OR-gate. Question-3: Implement the function (3 marks) by using a 4-to-1 Multiplexer and as few other gates as possible. Assume that only the uncomplemented inputs are available. [Clue: Using Shannon's expansion with respect to x2 and x3 can be useful] (4 marks) Question-4: A D- flip-flop is connected as shown in the figure. Determine the output waveform. What specific function does this device perform? (2 marks)
