Question: Questions 6 ( 5 - 3 0 ) . Determine the force developed in members GF , FB , and BC of the Fink truss

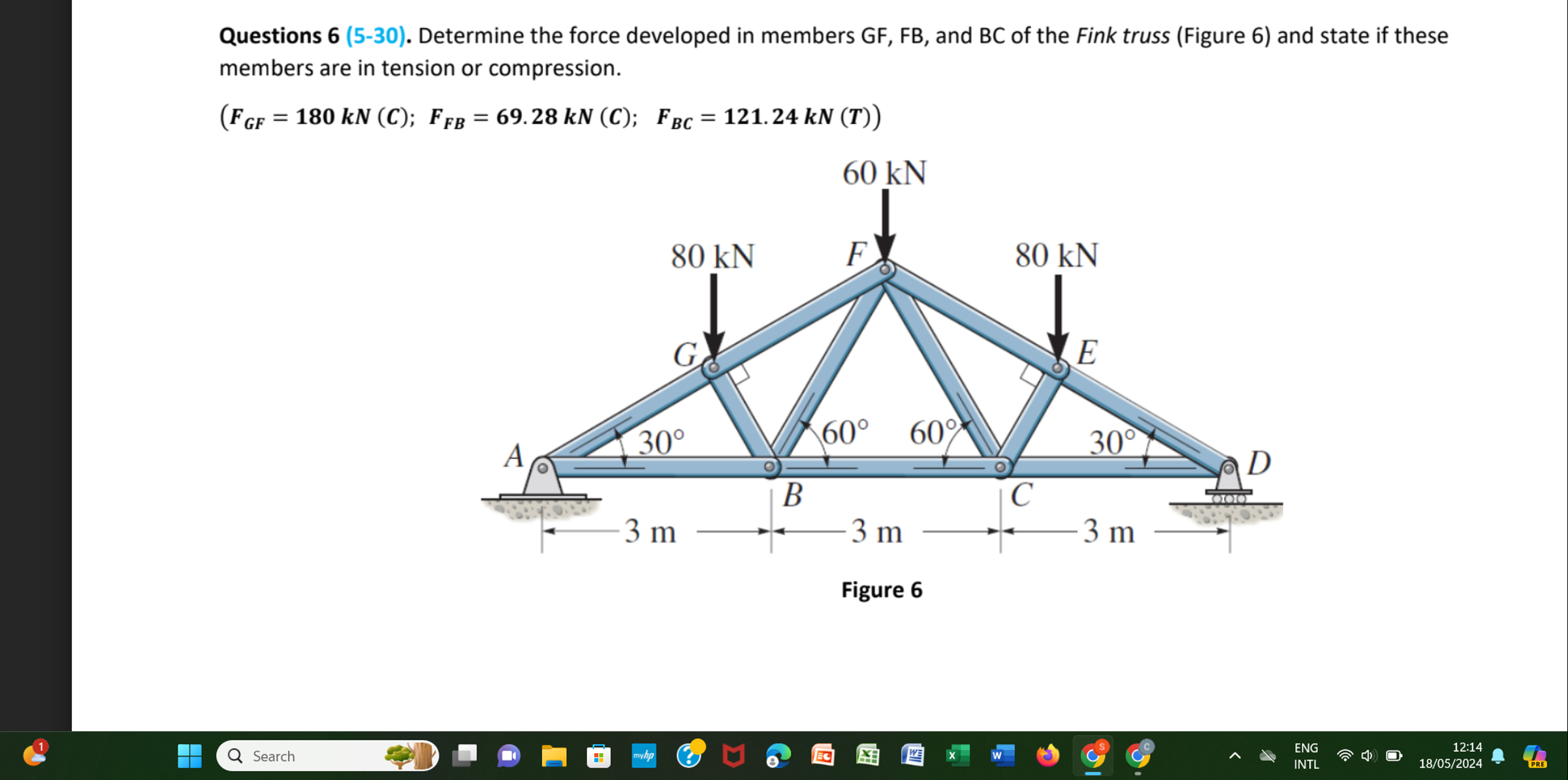

Questions 6(5-30). Determine the force developed in members GF, FB, and BC of the Fink truss (Figure 6) and state if these members are in tension or compression.
(FGF=180kN(C);Fmn=69.28kN(C).Fmn=12124kN(T))
Questions 6 ( 5 - 3 0 ) . Determine the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
