Question: R 3 - 3 . The rigid beam rests in the horizontal position on two 2 0 1 4 - T 6 aluminum cylinders having

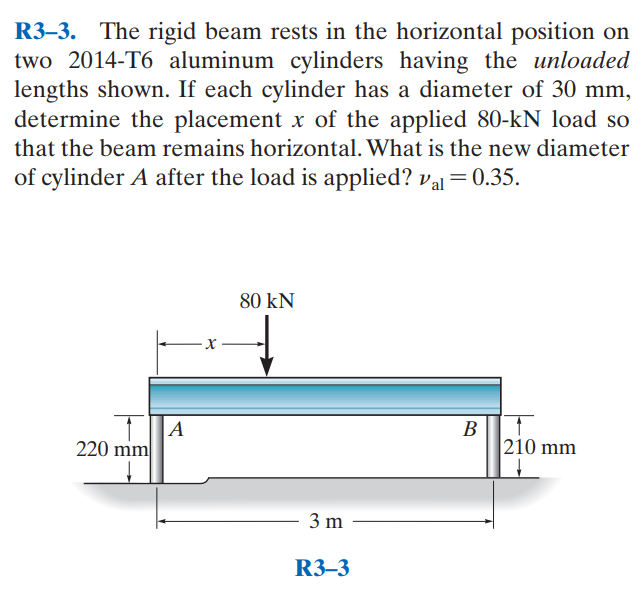

R3-3. The rigid beam rests in the horizontal position on
two 2014-T6 aluminum cylinders having the unloaded
lengths shown. If each cylinder has a diameter of 30 mm ,
determine the placement x of the applied 80-kN load so
that the beam remains horizontal. What is the new diameter
of cylinder A after the load is applied? nu_(al)=0.35.
R3-3
I'd be so thankful if you could solve this in detail
R 3 - 3 . The rigid beam rests in the horizontal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
