Activity Sheets: Section Ele

Instructor OK

Activity Sheet #$116$

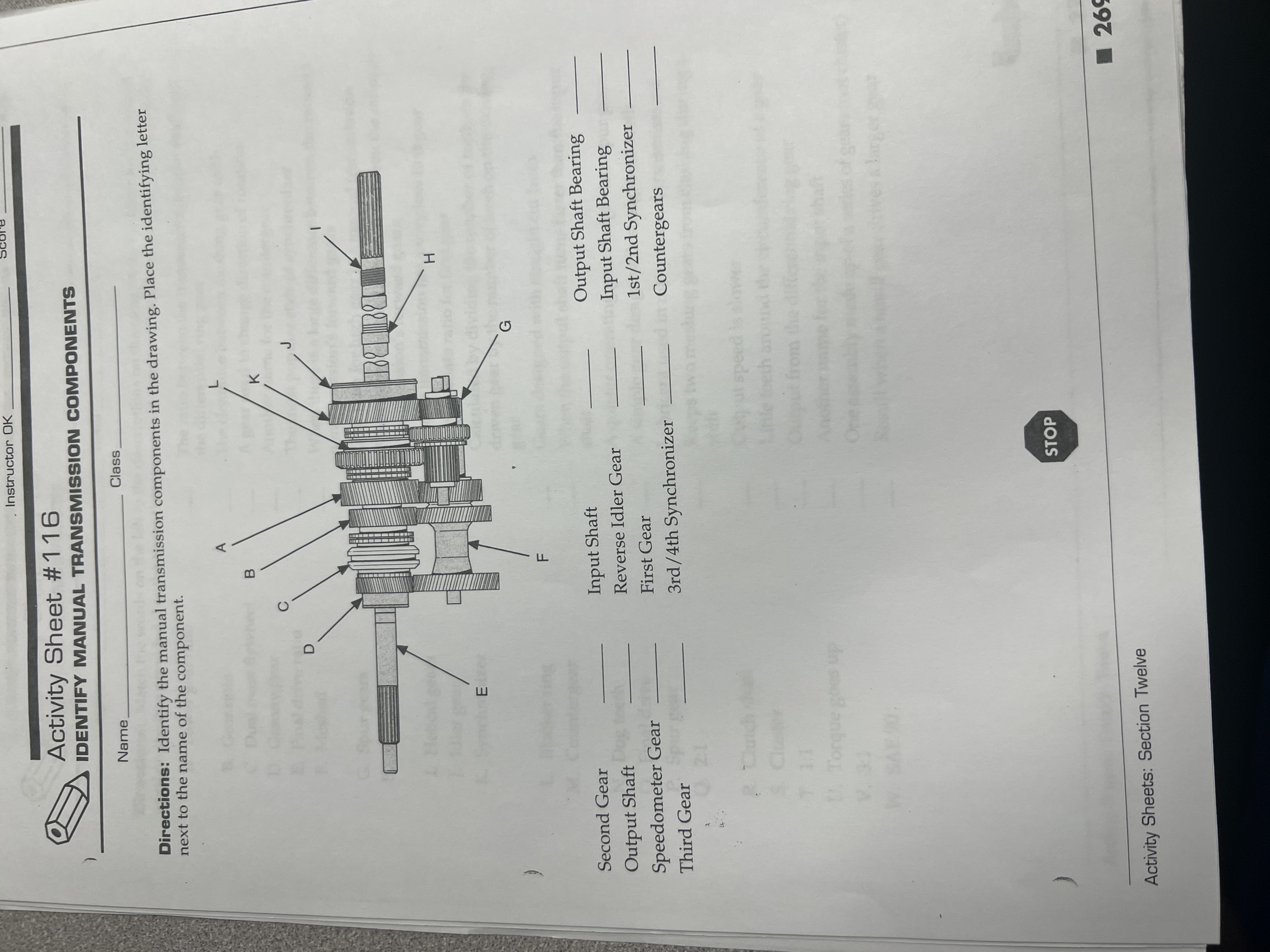

IDENTIFY MANUAL TRANSMISSION COMPONENTS

Name $q,$ Class $q,$

Directions: Identify the manual transmission components in the drawing. Place the identifying letter next to the name of the component.

$q,$ Output Shaft Bearing

Second Gear $q,$

Output Shaft $q,$

Speedometer Gear $q,$

Third Gear $q,$

$q,$ Input Shaft Bearing $q,$

Input Shaft

Reverse Idler Gear

$q,1$st$/2$nd Synchronizer $q,$

First Gear

$q,$ Countergears

STOP

Activity Sheets: Section Twelve

$269$
