Question: Ref program for the question The following shows the list file of a program with the program memory address, machine language, line number and assembly

Ref program for the question

a program with the program memory address, machine language, line number and

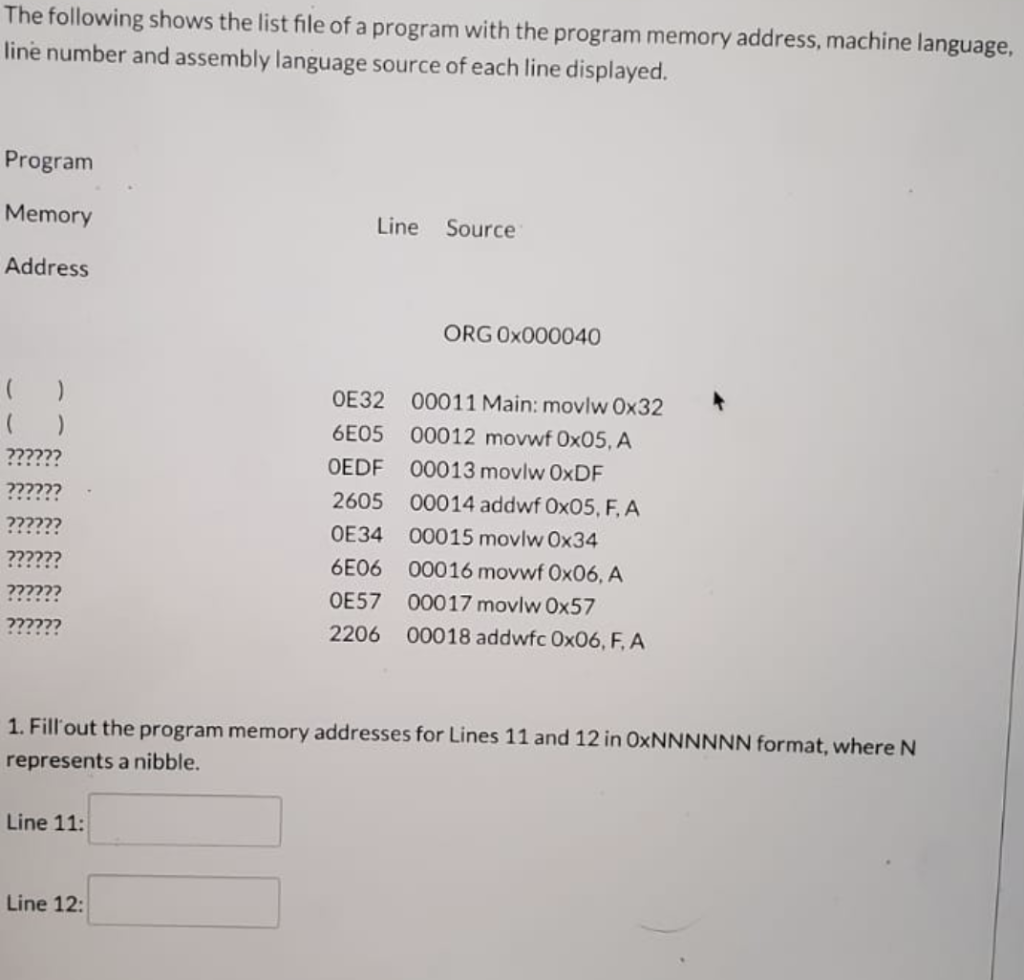

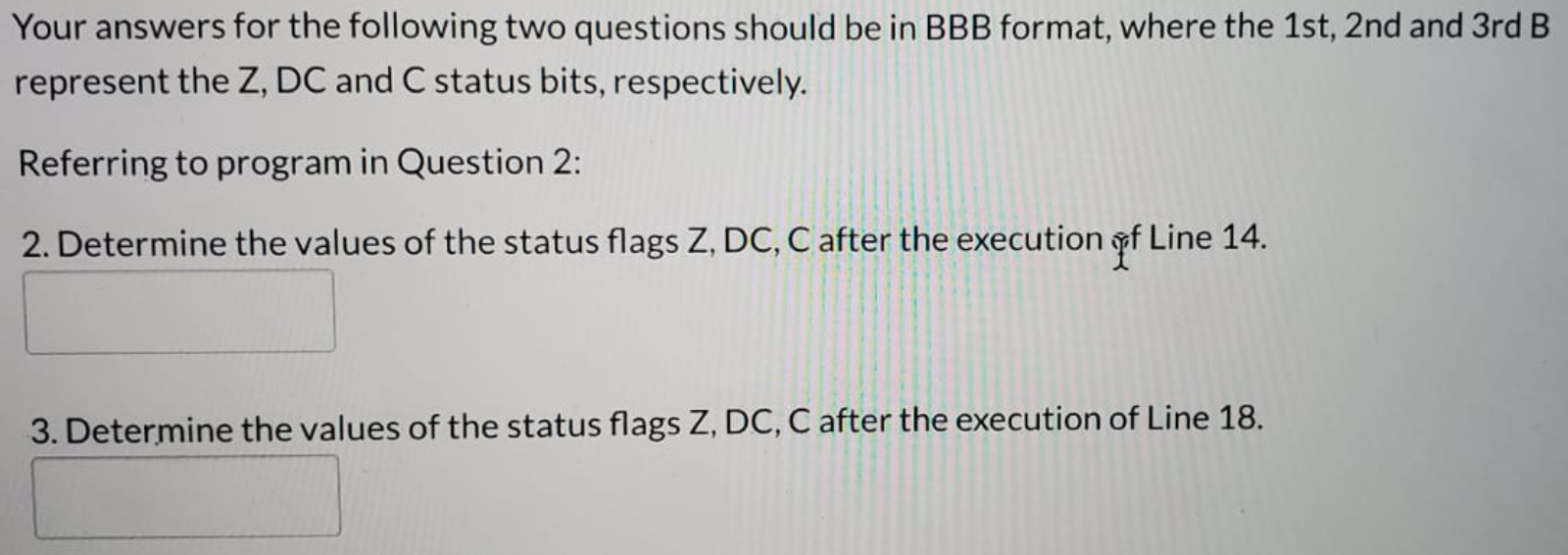

The following shows the list file of a program with the program memory address, machine language, line number and assembly language source of each line displayed. Program Memory Line Source Address ORG Ox000040 ?????? ?????? ?????? ?????? ????? ?????? 0E32 00011 Main: movlw Ox32 6E05 00012 movwf Ox05, A OEDF 00013 movlw OxDF 2605 00014 addwf Ox05, F. A OE34 00015 movlw Ox34 6E06 00016 movwf Ox06, A OE57 00017 movlw Ox57 2206 00018 addwfc Ox06, F. A 1. Fill'out the program memory addresses for Lines 11 and 12 in OxNNNNNN format, where N represents a nibble. Line 11: Line 12 Your answers for the following two questions should be in BBB format, where the 1st, 2nd and 3rd B represent the Z, DC and C status bits, respectively. Referring to program in Question 2: 2. Determine the values of the status flags Z, DC, C after the execution of Line 14. 3. Determine the values of the status flags Z, DC, C after the execution of Line 18. The following shows the list file of a program with the program memory address, machine language, line number and assembly language source of each line displayed. Program Memory Line Source Address ORG Ox000040 ?????? ?????? ?????? ?????? ????? ?????? 0E32 00011 Main: movlw Ox32 6E05 00012 movwf Ox05, A OEDF 00013 movlw OxDF 2605 00014 addwf Ox05, F. A OE34 00015 movlw Ox34 6E06 00016 movwf Ox06, A OE57 00017 movlw Ox57 2206 00018 addwfc Ox06, F. A 1. Fill'out the program memory addresses for Lines 11 and 12 in OxNNNNNN format, where N represents a nibble. Line 11: Line 12 Your answers for the following two questions should be in BBB format, where the 1st, 2nd and 3rd B represent the Z, DC and C status bits, respectively. Referring to program in Question 2: 2. Determine the values of the status flags Z, DC, C after the execution of Line 14. 3. Determine the values of the status flags Z, DC, C after the execution of Line 18
