Question: Refer to the table provided: a) Develop a network diagram reflecting activities A through H. b) Identify the critical path and explain how your determined

Refer to the table provided:

a) Develop a network diagram reflecting activities A through
H. b) Identify the critical path and explain how your determined this path..?

Refer to the table provided: a) Develop a network

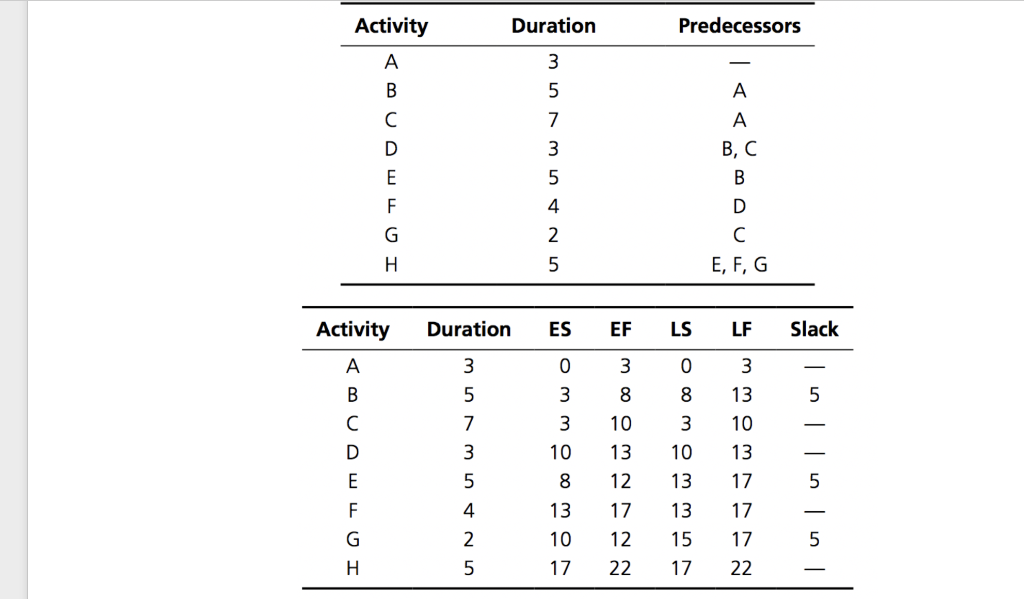

Activity Duration Predecessors 3 A B 5 A 7 3 5 D E F G . A B, C B D E, F, G 4 2 5 Activity Duration ES EF LS LF Slack 3 0 3 8 8 5 3 A B D E F G H 3 5 7 3 5 4 2 5 So 00 7 w wo 13 10 13 17 5 10 13 12 17 12 22 10 13 13 15 17 5 17 22 17

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
