Reinforcment concrete Design $2)$

Assume any data if missing.

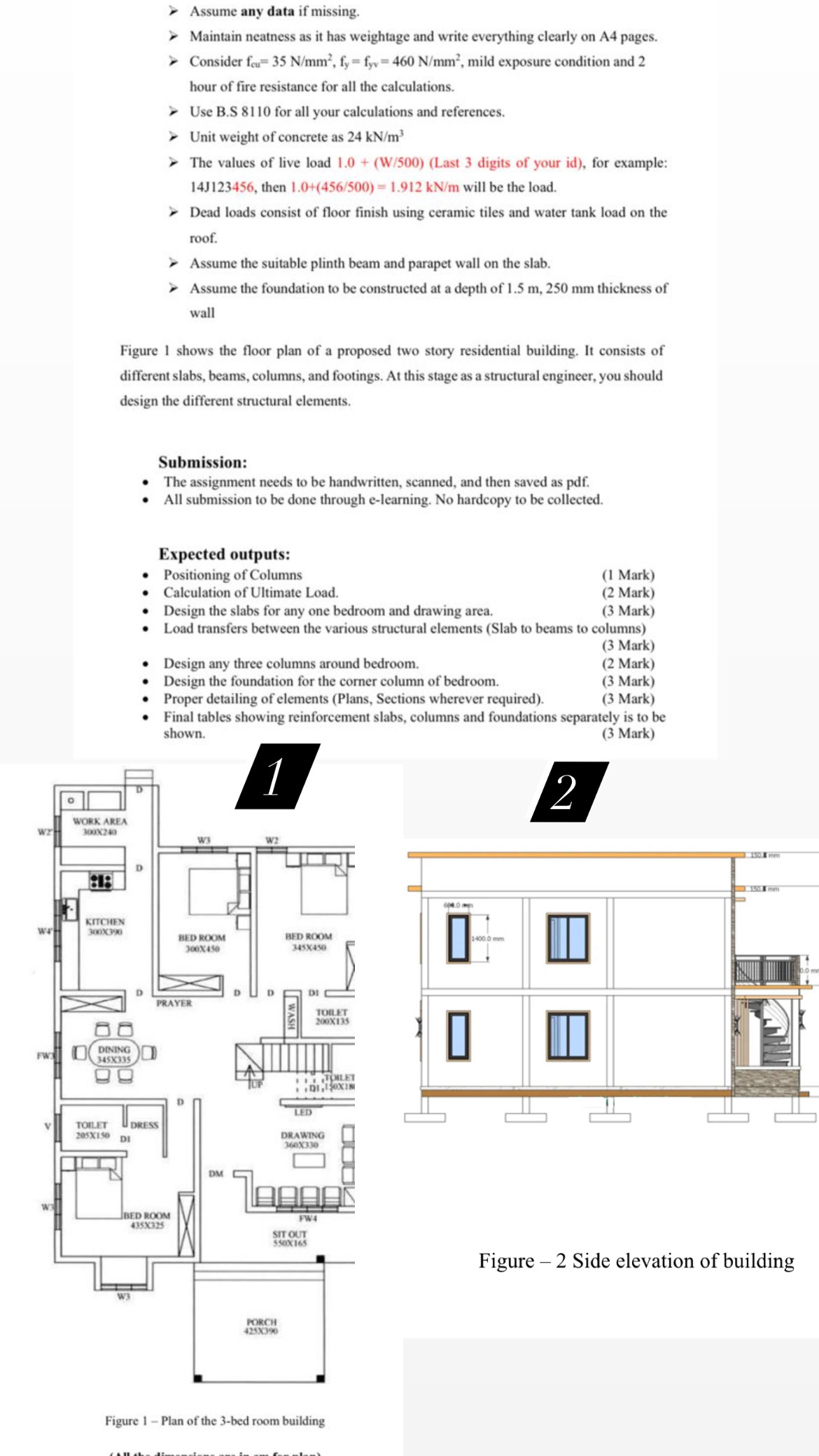

Maintain neatness as it has weightage and write everything clearly on A$4$ pages.Figure $1$ shows the floor plan of a proposed two story residential building. It consists of different slabs, beams, columns, and footings. At this stage as a structural engineer, you should design the different structural elements.

Submission:

The assignment needs to be handwritten, scanned, and then saved as pdf$.$

All submission to be done through e$-$learning. No hardcopy to be collected.

Expected outputs:

Positioning of Columns

$(1$ Mark$)$

Calculation of Ultimate Load.

Design the slabs for any one bedroom and drawing area.

$(3$ Mark$)$

Load transfers between the various structural elements $($Slab to beams to columns$)$

$(3$ Mark$)$

Design the foundation for the corner column of bedroom.

Proper detailing of elements $($Plans$,$ Sections wherever required$).(3$ Mark$)$

Final tables showing reinforcement slabs, columns and foundations separately is to be shown.

$(3$ Mark$)$
