Question: Relational Database Design A . ( 3 0 points ) Transform the following ER diagram to a relational database design. - Identify primary keys with

Relational Database Design

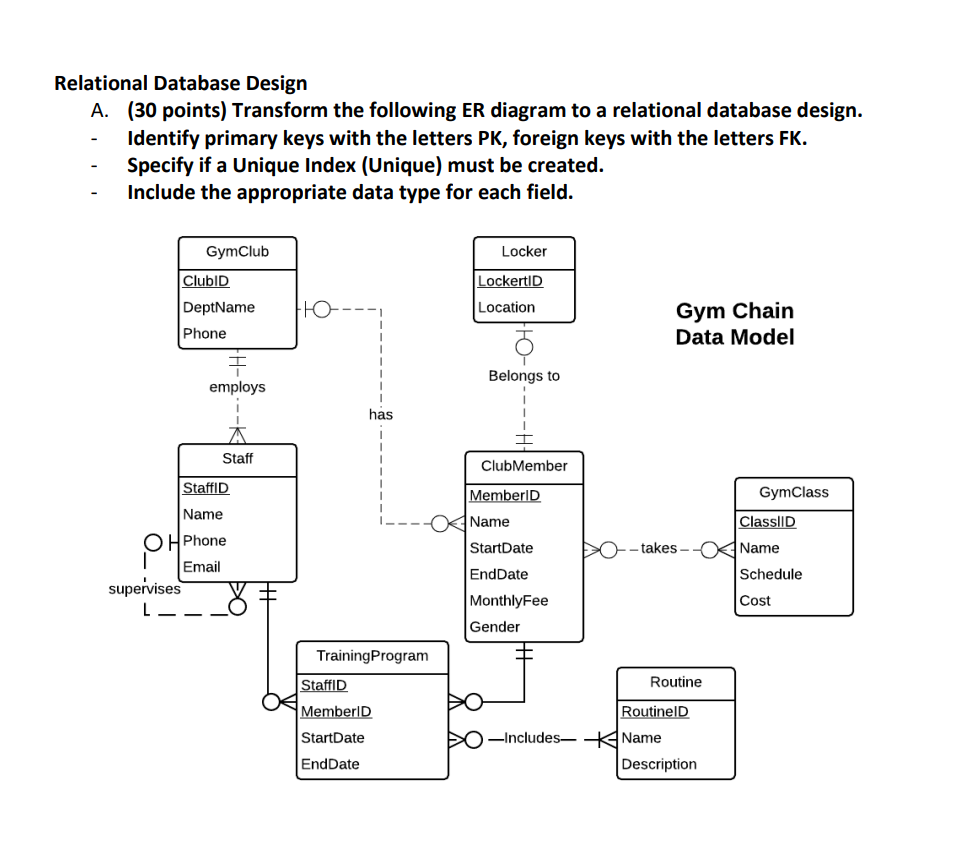

A.(30 points) Transform the following ER diagram to a relational database design.
- Identify primary keys with the letters PK, foreign keys with the letters FK.
-\(\quad \) Specify if a Unique Index (Unique) must be created.
- Include the appropriate data type for each field.
Relational Database Design A . ( 3 0 points )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
