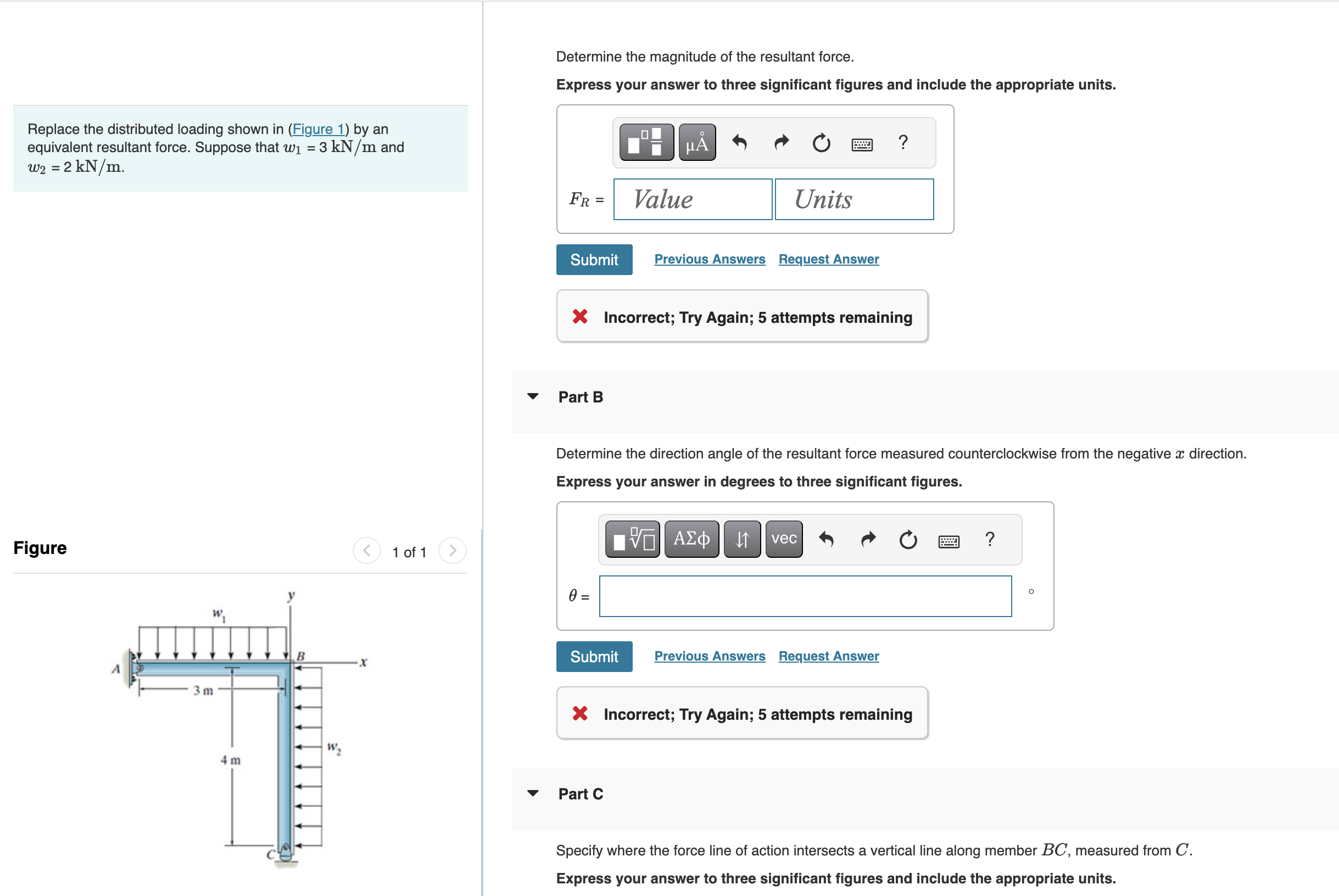

Question: Replace the distributed loading shown in ( Figure 1 ) by an equivalent resultant force. Suppose that w 1 = 3 k N m and

Replace the distributed loading shown in (Figure 1) by an
equivalent resultant force. Suppose that w1=3kNm and
w2=2kNm.
Figure
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR=
Request Answer
Incorrect; Try Again; 5 attempts remaining
Part B
Determine the direction angle of the resultant force measured counterclockwise from the negative x direction.
Express your answer in degrees to three significant figures.
=
Incorrect; Try Again; 5 attempts remaining
Part C
Specify where the force line of action intersects a vertical line along member BC, measured from C.
Express your answer to three significant figures and include the appropriate units.
Replace the distributed loading shown in ( Figure

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
