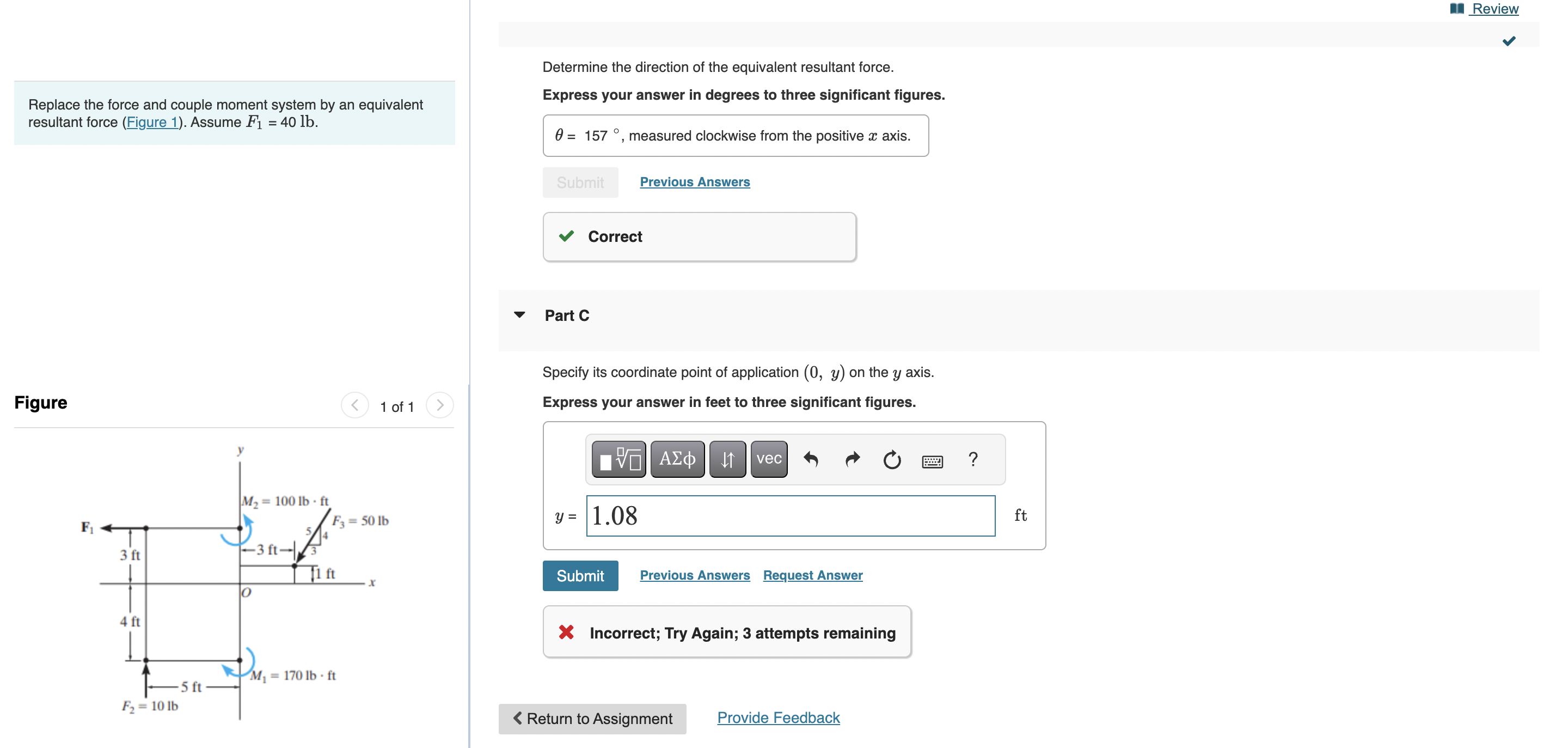

Question: Replace the force and couple moment system by an equivalent resultant force ( Figure 1 ) . Assume F 1 = 4 0 l b

Replace the force and couple moment system by an equivalent
resultant force (Figure 1). Assume F1=40lb.
Determine the direction of the equivalent resultant force.
Express your answer in degrees to three significant figures.
=157, measured clockwise from the positive x axis.
Previous Answers
Correct
Part C
Specify its coordinate point of application (0,y) on the y axis.
Express your answer in feet to three significant figures.
Replace the force and couple moment system by an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
