Question: Replace the force and couple system by an equivalent force and couple moment at point P . Take F 1 = 7 kN and F

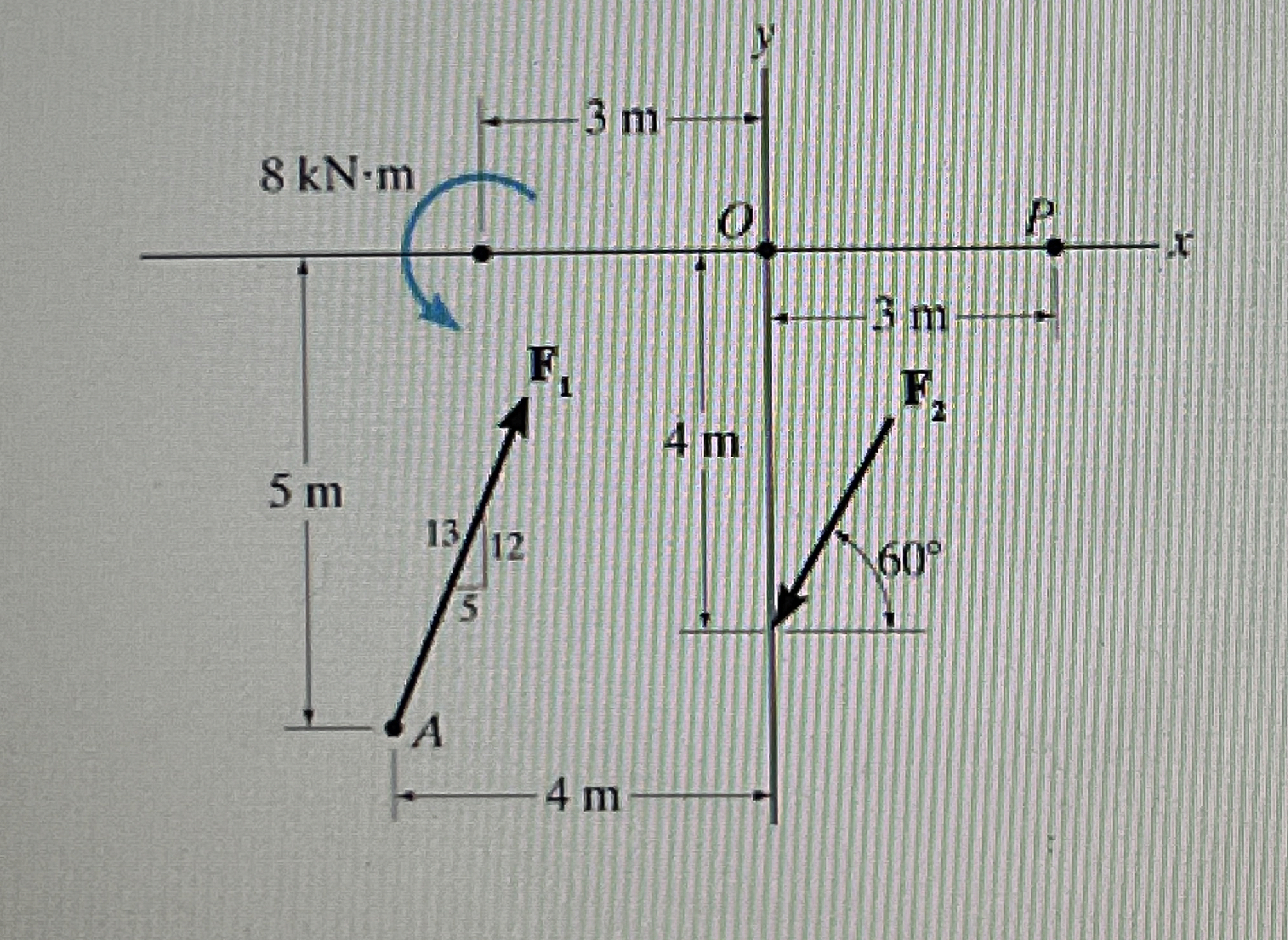

Replace the force and couple system by an equivalent force and couple moment at point P. Take F1=7kN and F2=4kN. Determine the Angle between the resultant force and the x-axis.
Replace the force and couple system by an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
