Question: Replace the force system acting on the pipe assembly by a resultant force F R and couple moment M R O at point O as

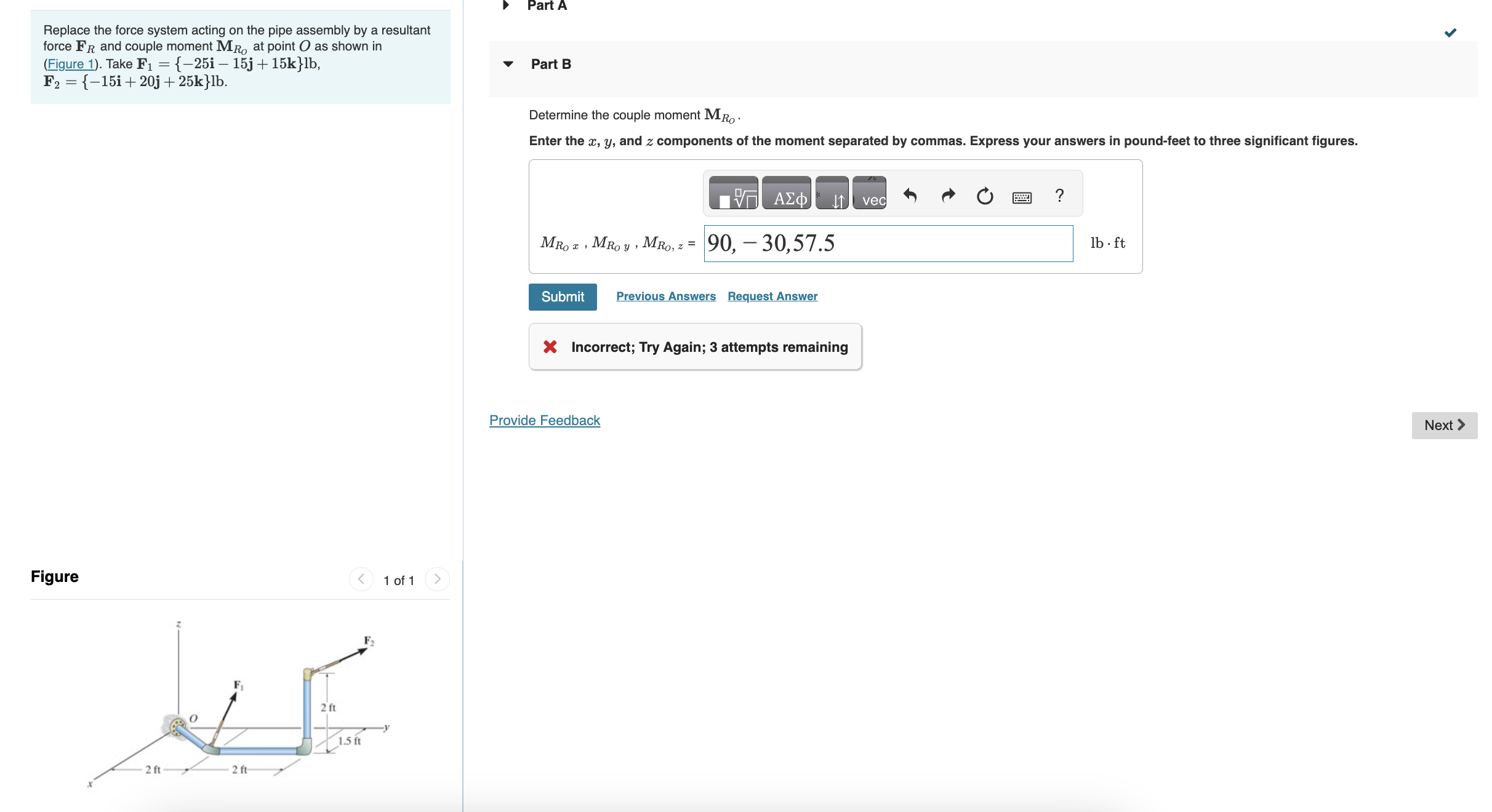

Replace the force system acting on the pipe assembly by a resultant
force FR and couple moment MRO at point O as shown in
(Figure 1). Take F1={-25i-15j+15k} lb,
F2={-15i+20j+25k}lb.
Figure
Part B
Determine the couple moment MRO.
Enter the x,y, and z components of the moment separated by commas. Express your answers in pound-feet to three significant figures.
MROx,MROy,MRO,z=
lb*ft
Previous Answers Request Answer
Incorrect; Try Again; 3 attempts remaining
Replace the force system acting on the pipe

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
