Question: Replace the force system by an equivalent reaultant force and couple moment at point O . Set F 1 and F 2 = 3 0

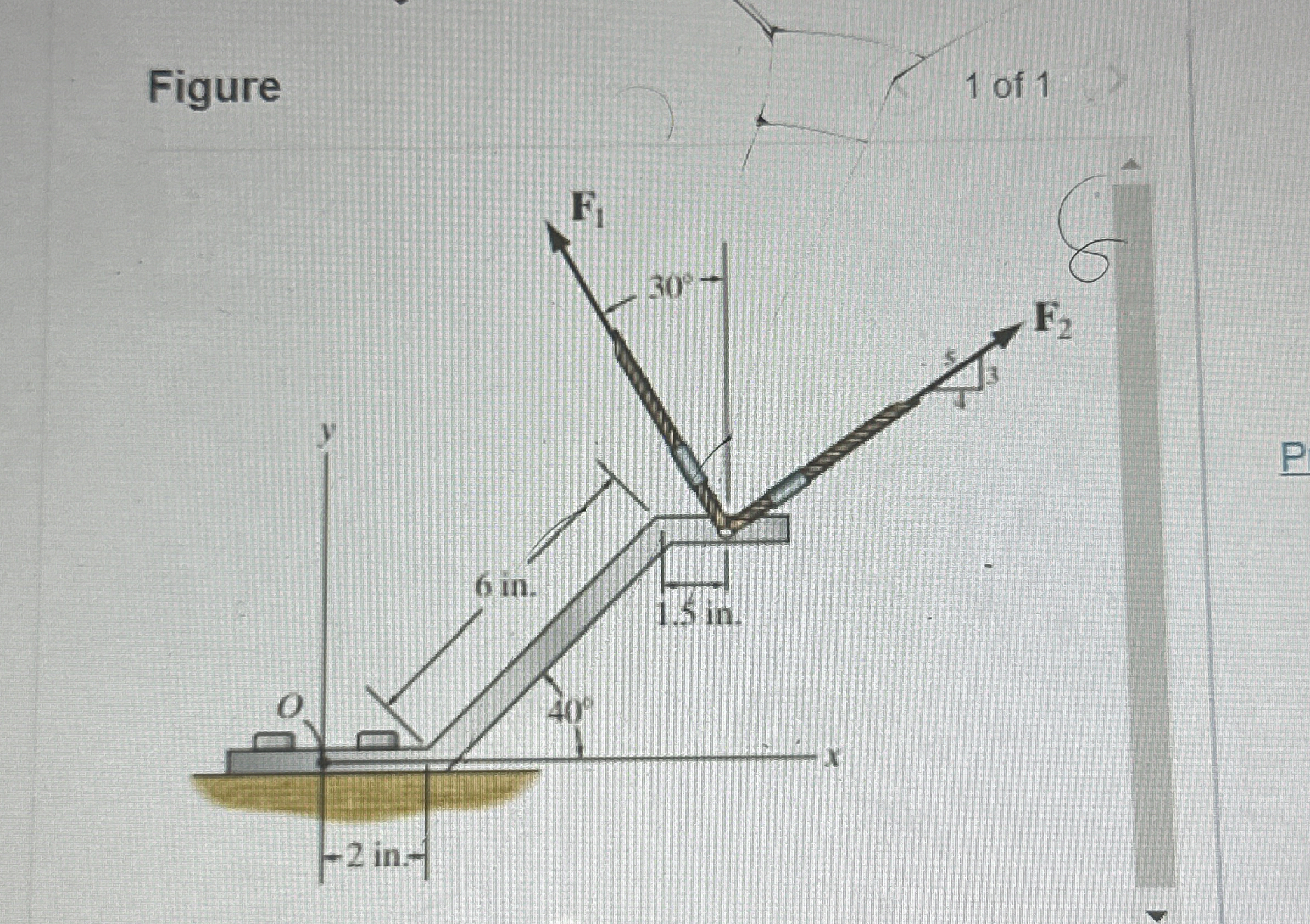

Replace the force system by an equivalent reaultant force and couple moment at point O. Set F1 and F2=30 lb
Determine magnitude force (Fr)
Detemine the angle bewteen the resultant force and the x axis. Theta=
Determine equivalant resultant couple moments about point O MrO=
Replace the force system by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
