Question: Replace the force system by an equivalent resultant force and couple moment at point O ( Figure 1 ) . Set F 1 = 3

Replace the force system by an equivalent resultant force and
couple moment at point O(Figure 1). Set F1=35lb and
F2=30lb.

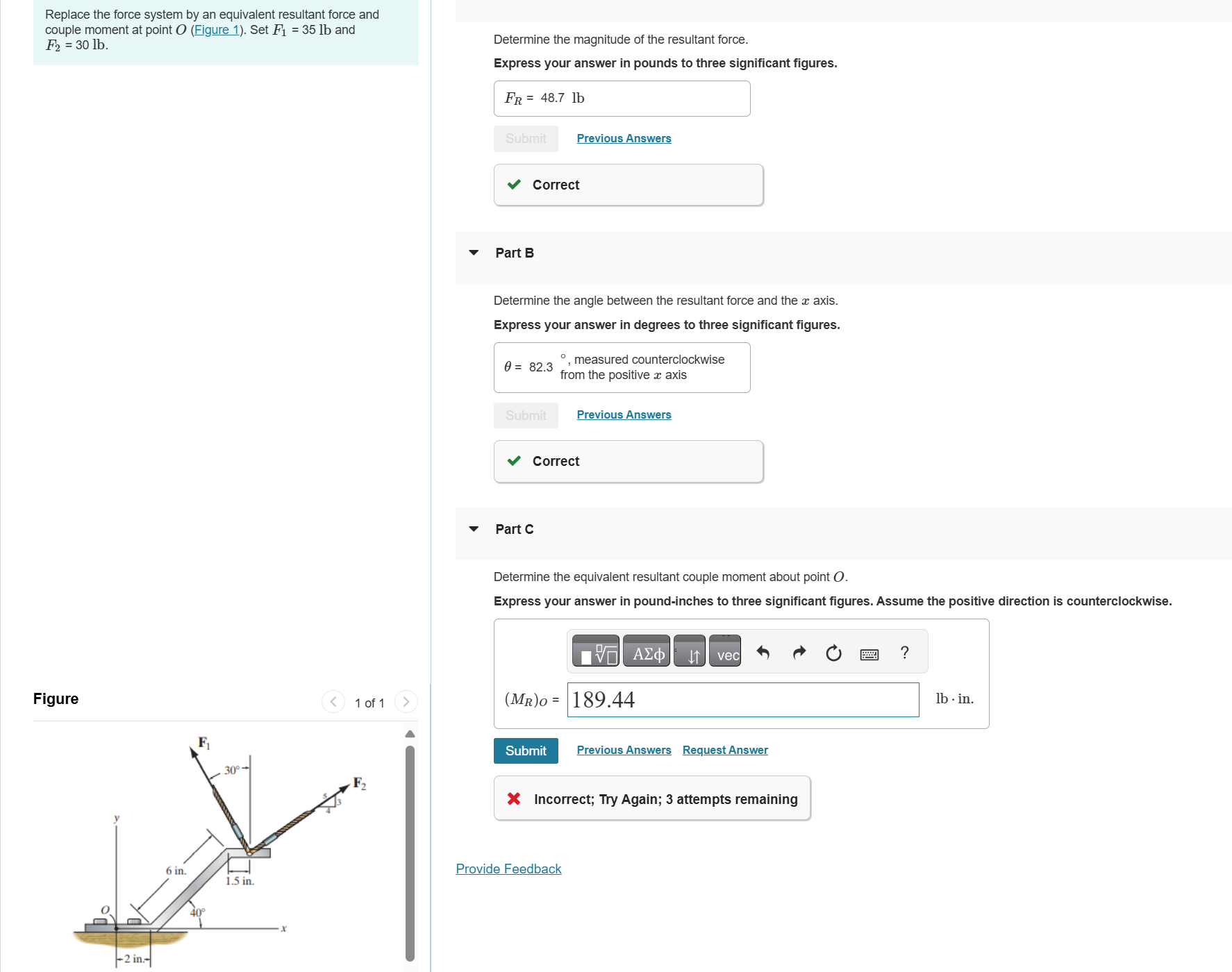

Figure
Previous Answers
Request Answer
Incorrect; Try Again; 3 attempts remaining
Replace the force system by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
