Question: Replace the force system with an equivalent resultant force and specify its location on the beam relative to point A . Also specify the resultant

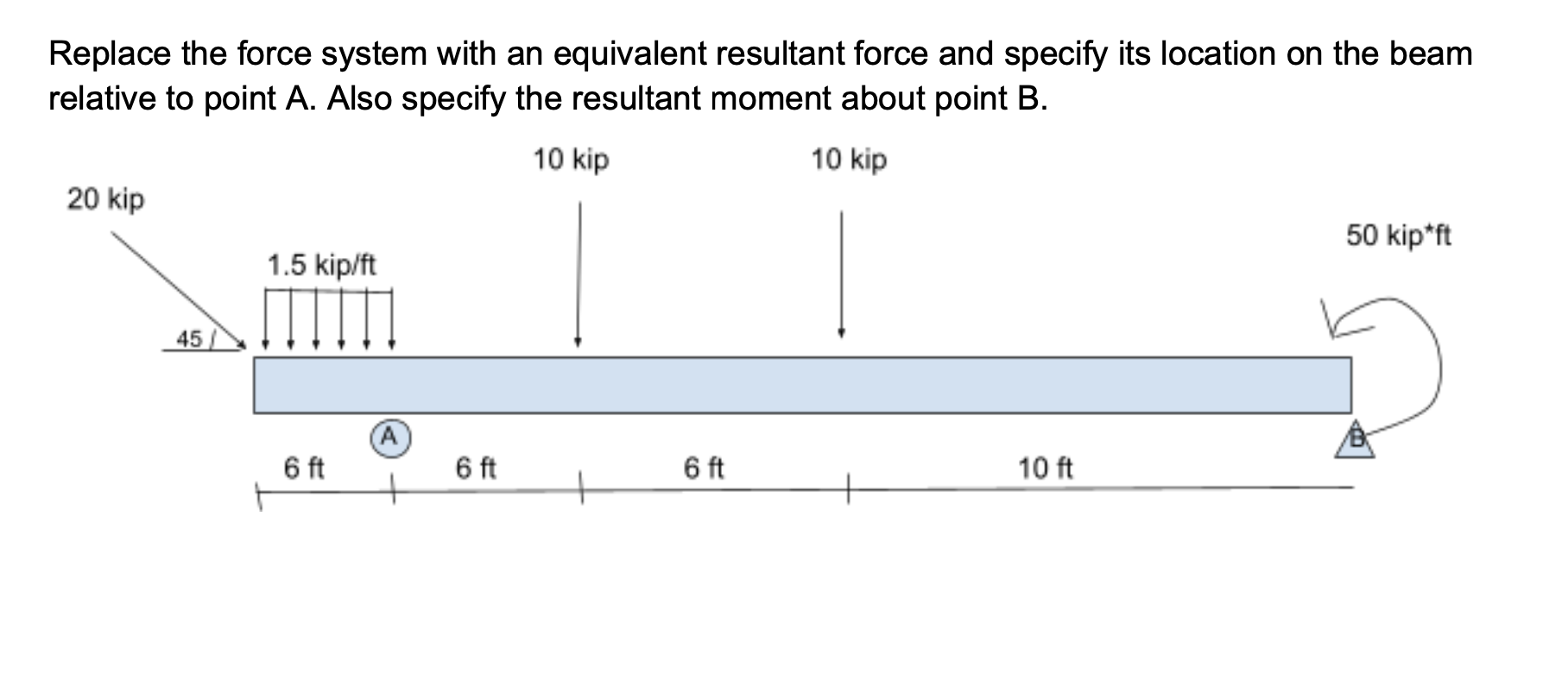

Replace the force system with an equivalent resultant force and specify its location on the beam
relative to point A. Also specify the resultant moment about point B.
Replace the force system with an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

HOMEWORK # 6 Problem # 1 Replace the force system with an equivalent resultant force and specify its location on the beam relative to point A . Also specify the resultant moment about point B .
