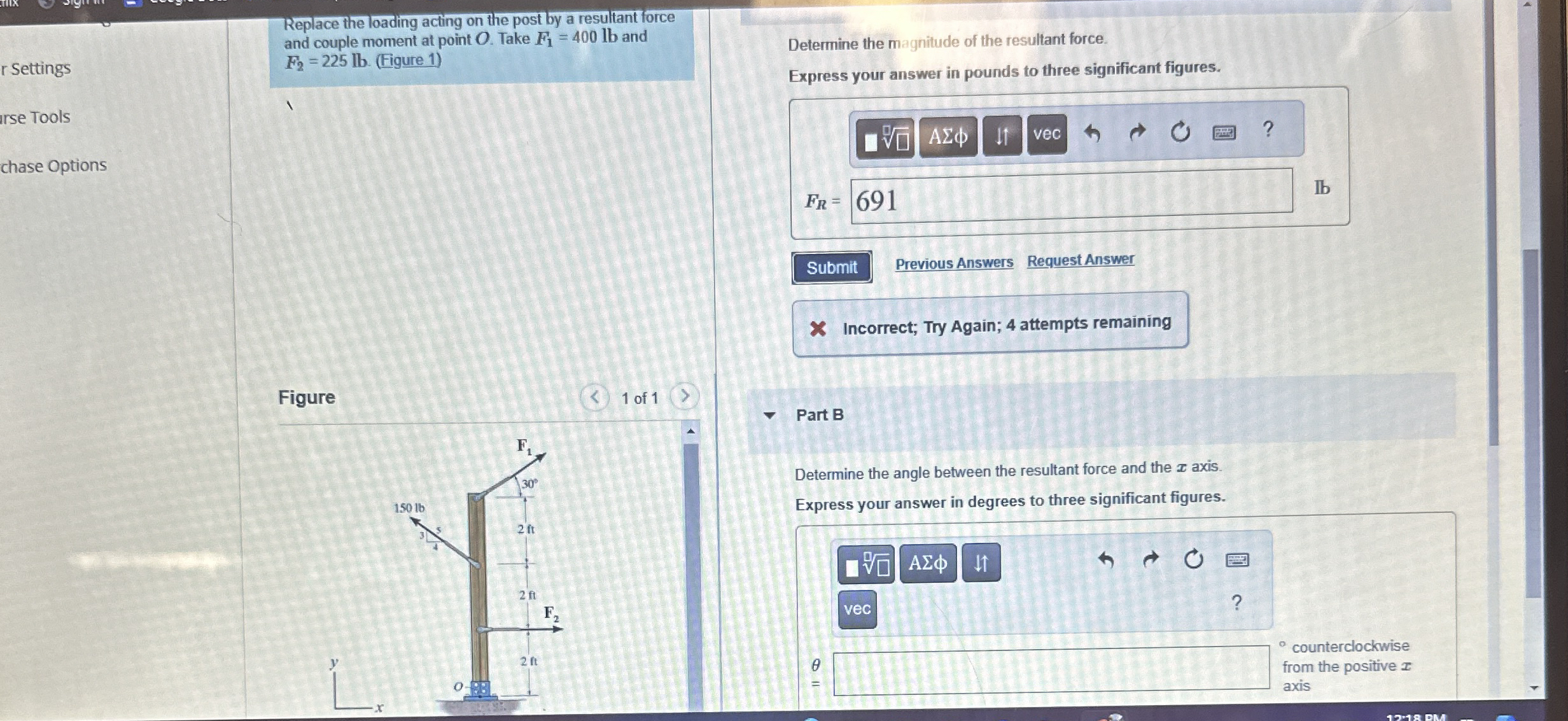

Question: Replace the loading acting on the post by a resultant force and couple moment at point O . Take F 1 = 4 0 0

Replace the loading acting on the post by a resultant force
and couple moment at point O. Take F1=400lb and
F2=225lb.(Figure 1)
Replace the loading acting on the post by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
