Question: Replace the loading by an equivalent resultant force. ( Figure 1 ) Suppose that w 1 = 7 k N m , w 2 =

Replace the loading by an equivalent resultant force.
(Figure 1) Suppose that w1=7kNm,w2=4kNm,
and w3=6kNm.
Part A
Determine the magnitude of the equivalent resultant force.
Express your answer to three significant figures and include the appropriate units.
Request Answer
Part B
Specify the location of the equivalent resultant force on the beam, measured from point O.
Express your answer to three significant figures and include the appropriate units.
Request Answer

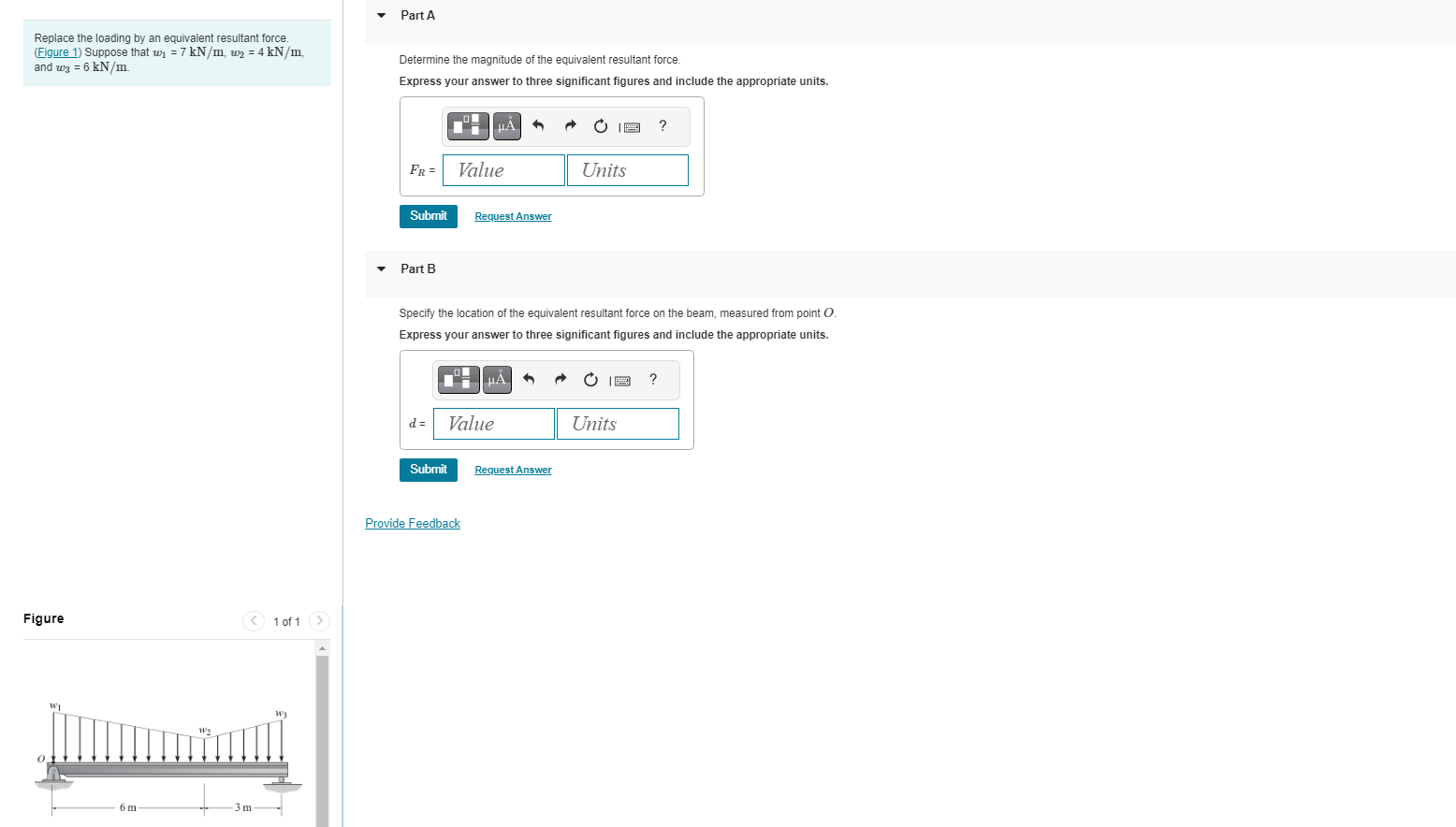

Figure
Replace the loading by an equivalent resultant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
