Question: Replace the loading on the frame by a single resultant force. Suppose that F 1 = 3 5 0 N , F 2 = 4

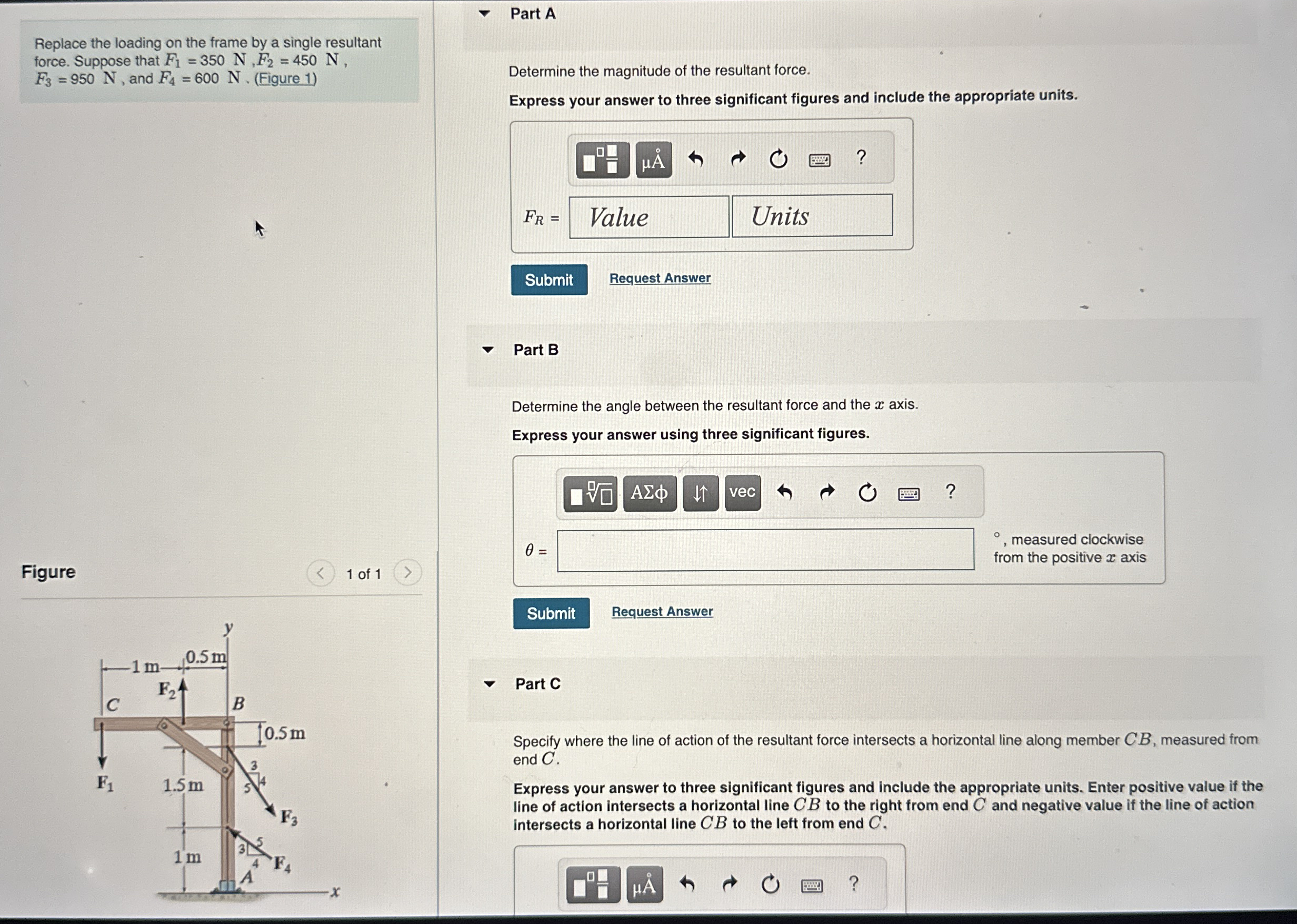

Replace the loading on the frame by a single resultant force. Suppose that F1=350N,F2=450N,F3=950N, and F4=600N.(Figure 1)
Part A
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
Request Answer
Part B
Determine the angle between the resultant force and the x axis.
Express your answer using three significant figures.
=, measured clockwise from the positive x axis
Figure
1 of 1
Replace the loading on the frame by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
