Question: Replace the loading on the frame by a single resultant force. Suppose that F 1 = 2 0 0 l b , F 2 =

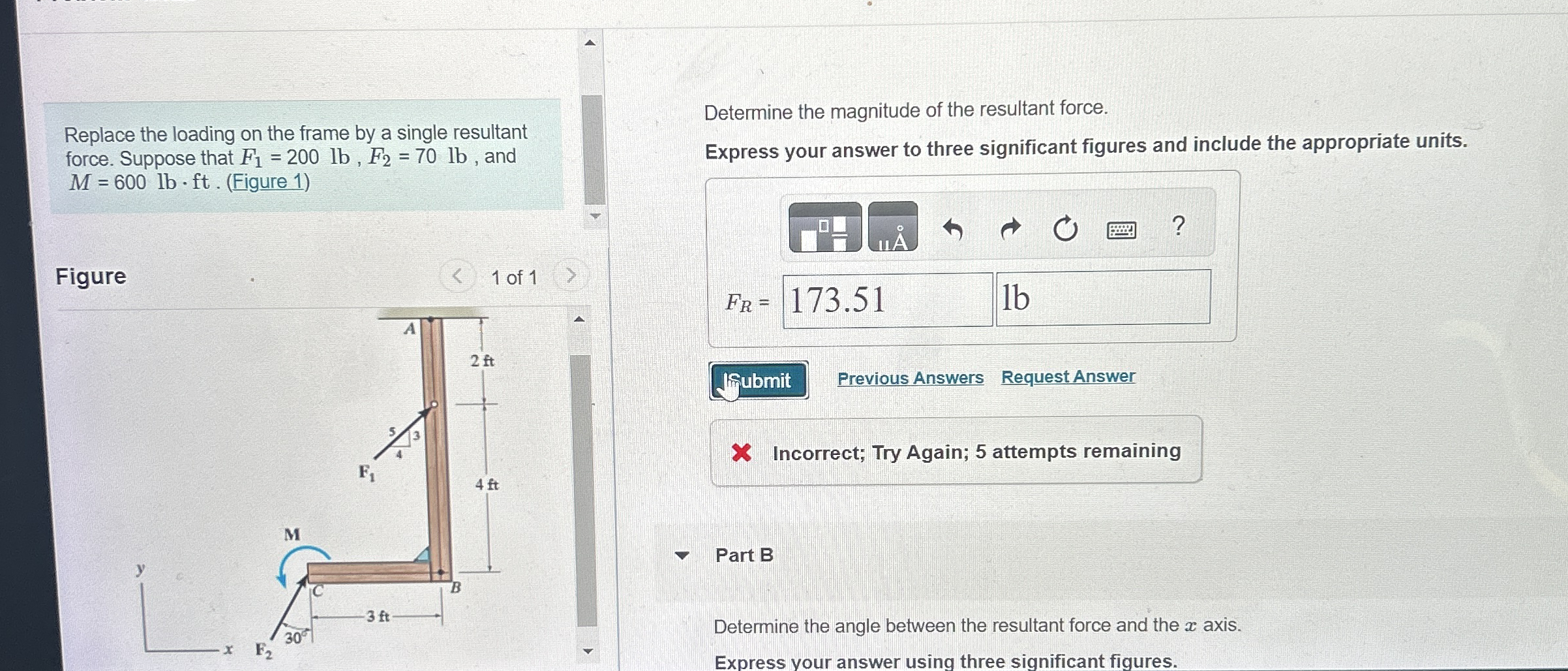

Replace the loading on the frame by a single resultant force. Suppose that F1=200lb,F2=70lb, and M=600lb*ft.(Figure 1)
Figure
1 of 1
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR=
Previous Answers
Request Answer
X Incorrect; Try Again; 5 attempts remaining
Part B
Determine the angle between the resultant force and the x axis.
Express your answer using three significant figures.
Replace the loading on the frame by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading on the frame by a single resultant force. Suppose that F 1 = 4 0 0 N , F 2 = 6 0 0 N , F 3 = 8 5 0 N , and F 4 = 2 5 0 N . ( Figure 1 ) Determine the magnitude of the resultant...

Q:

* 4 - 1 2 0 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member A B , measured from A . 4 - 1 2 1 . Replace the loading on the frame by...

Q:

Problem 3 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. F. = 350 N, F, = 500 N, F) = 600 N, M = 150 Nm, 0 = 60...

Q:

Activity 1 Calculate an equivalent system of forces at point A ( Calculate resultant force and resultant moment ) . Replace the loading on the frame by a single resultant force. Specify where its...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250 N d...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member CD, measured from end C. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250...

Q:

Replace the loading on the frame by a single resultant force in N . Take F 1 = 5 0 6 N , F 2 = 2 1 7 N . Specify Magnitude of the resultant force in N . Also ( for your practice only, the answer is...

Q:

Replace the loading on the frame by a single resultant force. Specify where the force acts, measured from end A. Given: F1 = 450 N a = 2 m F2 = 300 N b = 4 m F3 = 700 N c = 3 m θ = 60 deg M =...

Q:

Replace the loading on the frame by a single resultant force. Specify where the force acts , measured from end B. Given: F1 = 450 N a = 2 m F2 = 300 N b = 4 m F3 = 700 N c = 3 m θ = 60 deg M =...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 300 lb M = 600 lb⋅ ft F2 = 200 lb a = 3 ft b = 4...
