Question: Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical line along member A B

Replace the loading on the frame by a single resultant force. Specify where
its line of action intersects a vertical line along member AB, measured from
A
Hibbeler 14thEd
Hibbeler 14thEd

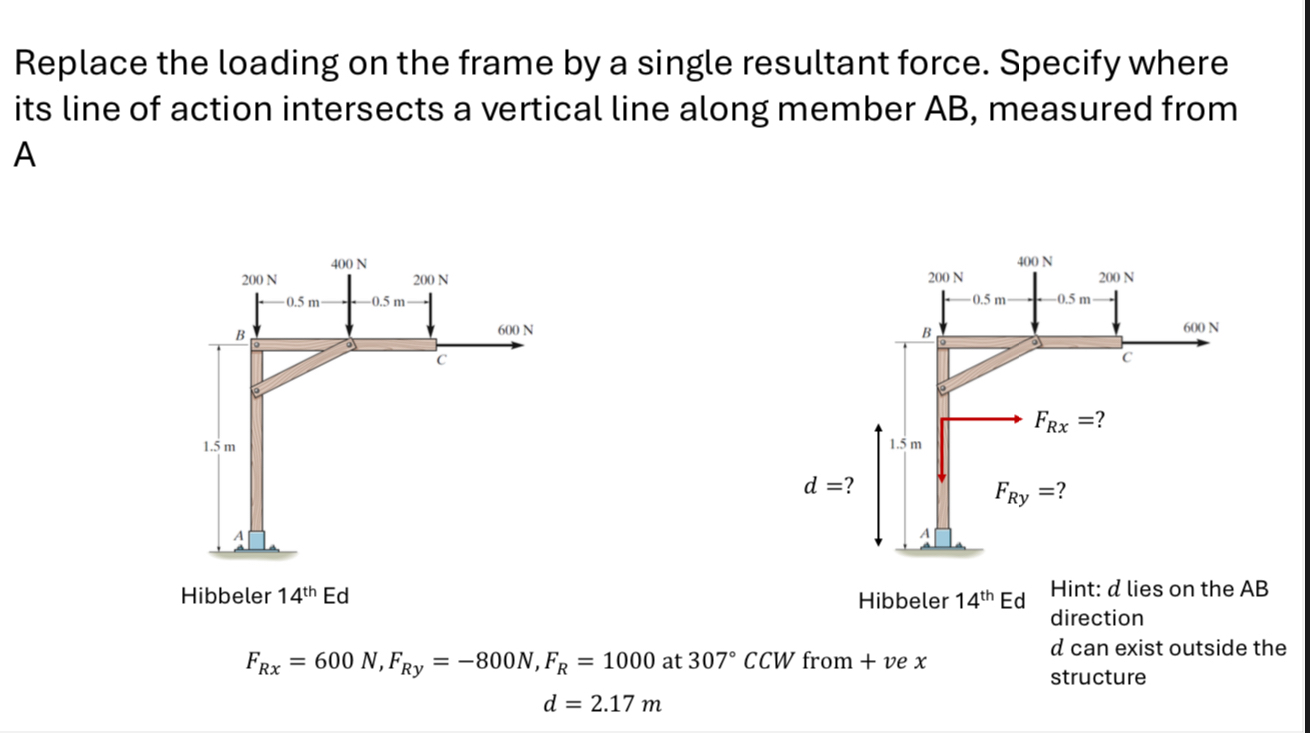

Hint: d lies on the AB
direction
FRx=600N,FRy=-800N,FR=1000at307CCW from +vex
d=2.17m
d can exist outside the
structure
Replace the loading on the frame by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
