Question: Replace the loading system acting on the beam by an equivalent force and couple moment at point 1 Report the equtvalent couple moment in 4

Replace the loading system acting on the beam by an equivalent force and couple moment at point 1 Report the equtvalent couple moment in 4.N m in this question. Consider w0=4kNm, and w1=4kNm.
1

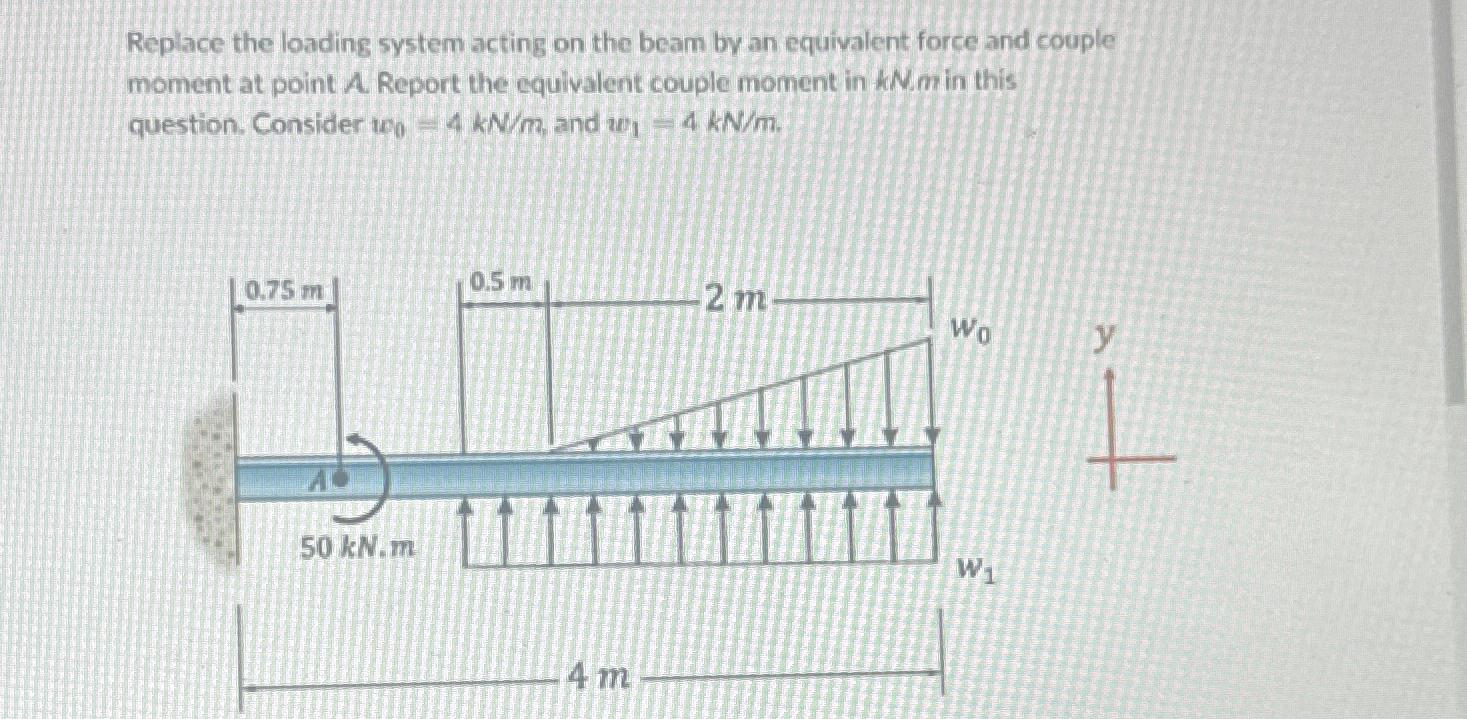

Replace the loading system acting on the beam by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
