Question: Replace the loading system by an equivalent resultant force and couple moment acting at point A . ( Figntre 1 ) Assume F 1 =

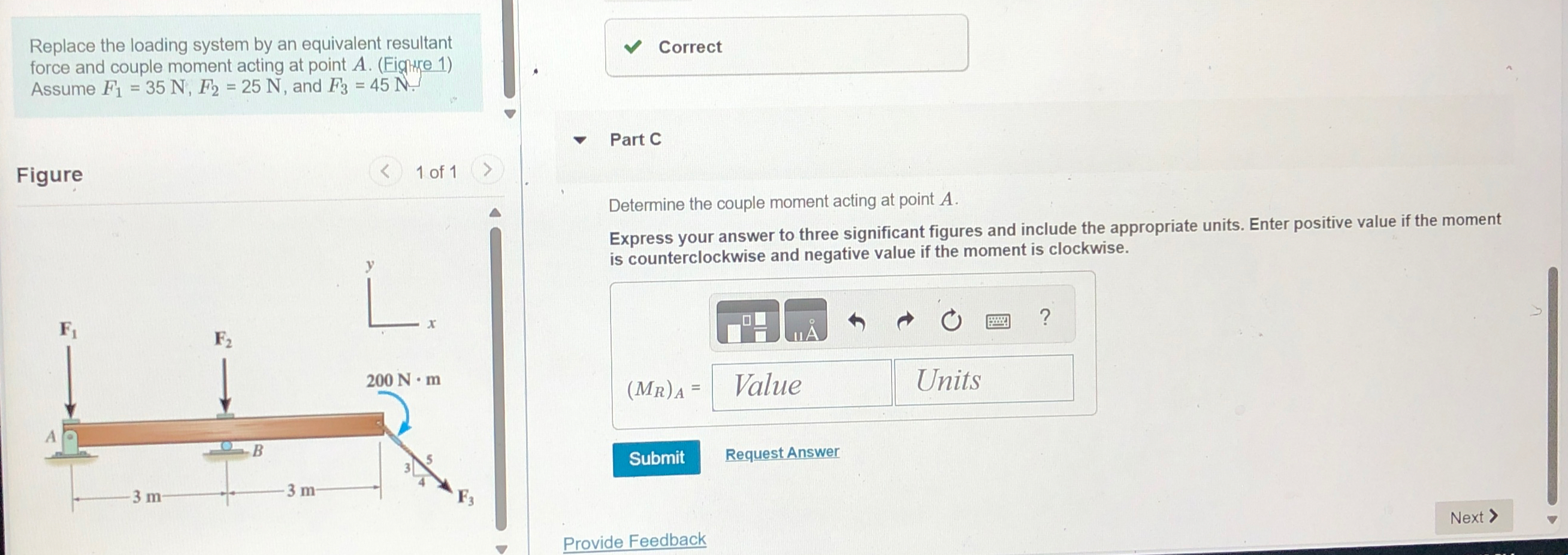

Replace the loading system by an equivalent resultant force and couple moment acting at point

A . (

Figntre

1)

Assume

F_{1} = 35 N, F_{2} = 25 N,

and

F_{3} = 45 N .

Figure

1

1

Part C

Determine the couple moment acting at point

A .

Express your answer to three significant figures and include the appropriate units. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise.

(M_{R})_{A} =

Request Answer

Provide Feedback

Replace the loading system by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Question 2 Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume F1=4U N, F2=25 N and F3=55 N. (a) Determine the magnitude of the resultant force....

Fundamental Problem 4.25 Fundamental Problem 4.25 Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume Fl = 130 lb , F2 = 230 lb and Fg = 180 lb...

Correct In three of the cases, the hand only needs to exert a reaction force, but in case A the hands need to exert a couple moment to prevent the rod from rotating about his hand in the clockwise...

The frame has an original loading system of four applied forces and one applied couple moment. Replace this loading system by an equivalent resultant force and couple moment acting at point B F (F),...

Please help The frame has an original loading system of four applied forces and one applied couple moment. Replace this loading system by an equivalent resultant force and couple moment acting at...

Replace the loading system by an equivalent resultant force and couple moment acting at point A. 900 N \\ 30 300 N 300 N-m 0.75 m | 0.75 m | 0.75 m | 0.75 m Replace the loading system by an...

Q.3) The structure below is subjected to a set of forces as shown. a. Replace the given system by an equivalent resultant force and couple moment acting at point 0. Draw the equivalent system. Reduce...

replace the loading by an equivalent resultant force and couple moment at point O; 7.5KN/m, 20KN/m, 3m ,3m, 4.5m 4. Replace the loading shown with an equivalent resultant force and couple moment...

On the frame structure shown below; a) Replace the force system by an equivalent resultant force and couple moment acting at point A. b) Replace the force system by a single resultant force, and...

Handle forces F1 and F2 are applied to the electric drill. Replace this system by an equivalent resultant force and couple moment acting at point O. Express the results in Cartesian vector form....
