Question: Replace the loading system by an equivalent resultant force and couple moment acting at point A . Assume F 1 = 1 0 0 lb

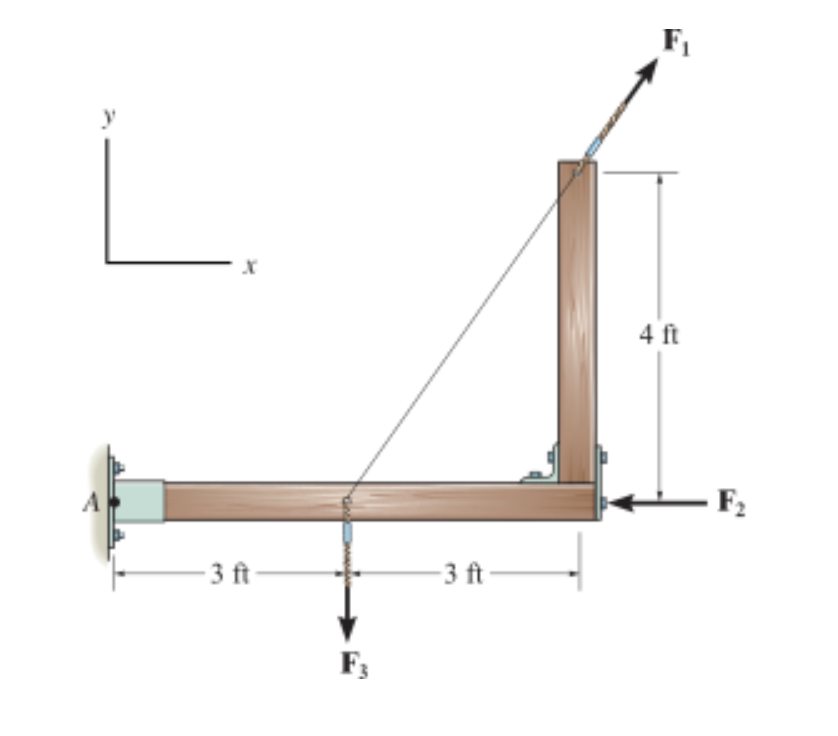

Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume F1=100 lb, F2=250 lb, and F3=190 lb.
- Determine the angle between the resultant force and the x axis.
- Determine the resultant couple moment acting at point A
Replace the loading system by an equivalent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
