Question: Replace the loadings shown by a single resultant force, and specify where its line of action intersects member ion intersects A B measured from point

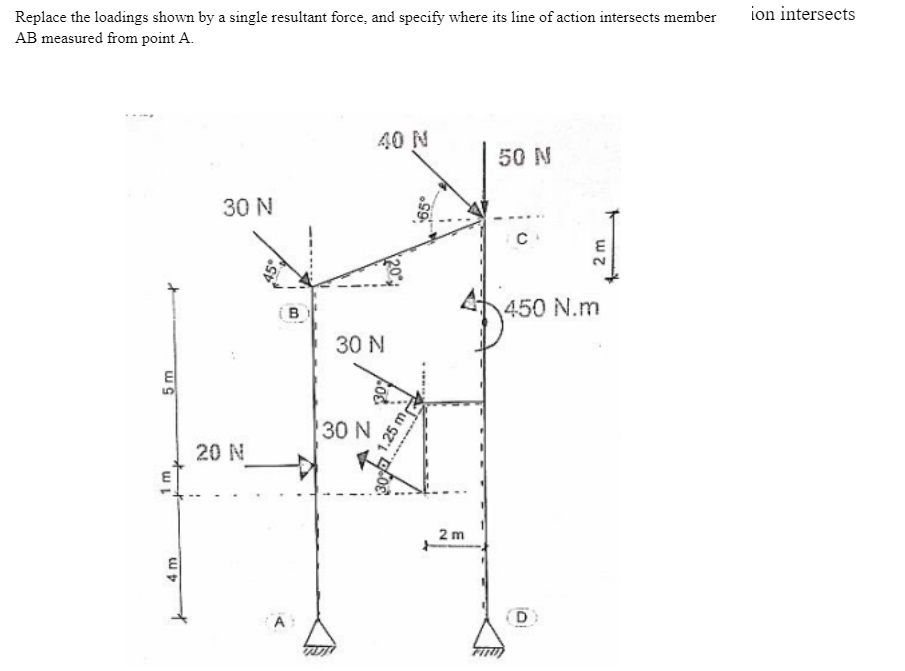

Replace the loadings shown by a single resultant force, and specify where its line of action intersects member ion intersects AB measured from point A.
Replace the loadings shown by a single resultant

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
