Question: Replace the parallel force system acting on the plate by a resultant force. Suppose that F 1 = 4 kN F 2 = 8 .

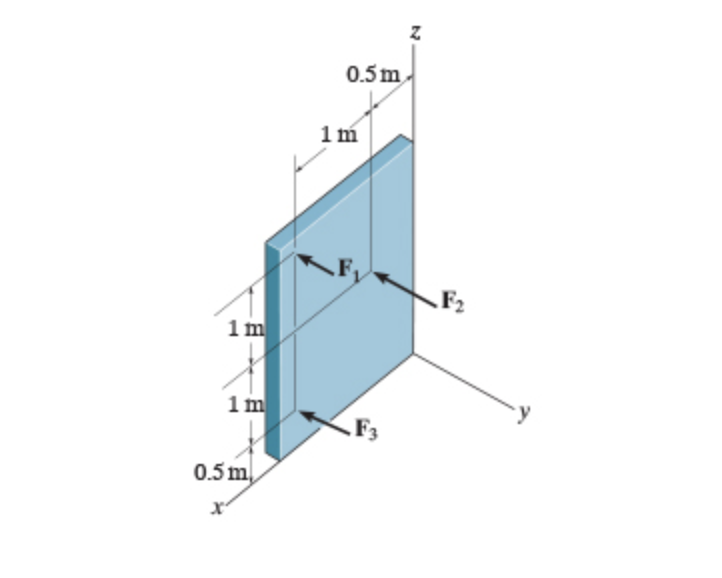

Replace the parallel force system acting on the plate by a resultant force. Suppose that
F1=4kN
F2=8.1kN
,and
F3=7.1kN
Specify the location of the resultant force on thex zplane.
Enter thexandz coordinates separated by a comma.
Replace the parallel force system acting on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
