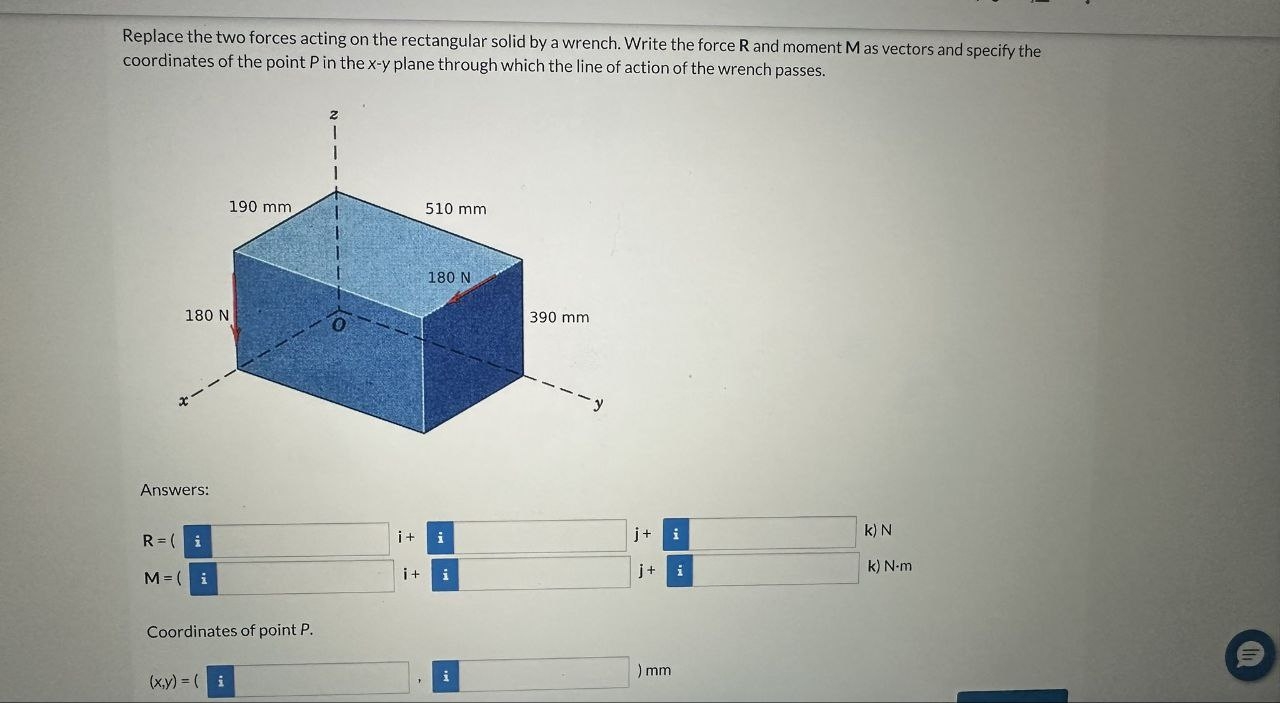

Question: Replace the two forces acting on the rectangular solid by a wrench. Write the force R and moment M as vectors and specify the coordinates

Replace the two forces acting on the rectangular solid by a wrench. Write the force R and moment M as vectors and specify the coordinates of the point P in the x-y plane through which the line of action of the wrench passes.
Answers:
i+
j+
k)N*m
Coordinates of point P.
(x,y)=(,)mm
Replace the two forces acting on the rectangular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
