Required:

Draw a project activity network using AOA Pert Chart methodology and label each node and arrow appropriately; assuming a finish-start (FS) relationship between activities. (The length of the arrows must be indicative of the duration where possible). Please provide a screenshot of the full diagram.

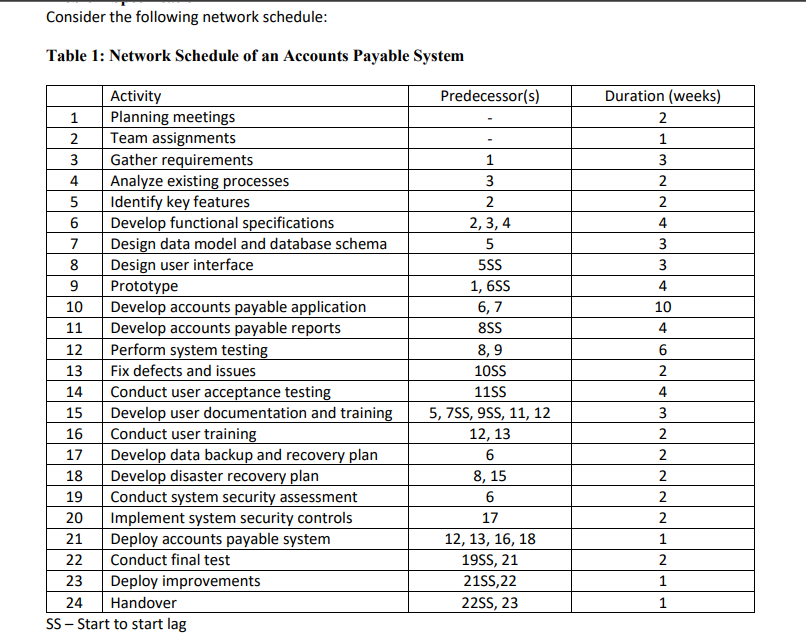

Consider the following network schedule: Table 1: Network Schedule of an Accounts Payable System Notes: - A working day is Monday, Tuesday, Wednesday, Thursday and Friday (8am - 5pm ). - Staff works Mondays through Friday. - Project start date is 3rd April, 2023. - The last Friday of every month is a sports day for the company. No work is done on this day. - The following holidays are observed in a year. January 1 - New Years Day Second Monday in January, April, May, July, August, October, December is Eat-All-You- Can day April 10-Flower Day May 24 - Mighty Mums Day 2 June 18 - Love Your Neighbor Day August 17 - Super Dads Day - December 20th - Blame Someone Else Day - If a holiday falls on a Saturday then Friday will be given as an extra day off, and if it falls on a Sunday then Monday will be given as a day off. No two holidays can be on the same day. Given the information provided in Table 1 and key notes, answer the following questions. Read the questions carefully, and refer to the notes and table for more information
