Question: ! Required information A 3 0 0 - N force P is applied at Point A of the bell crank as shown in the figure.

!
Required information

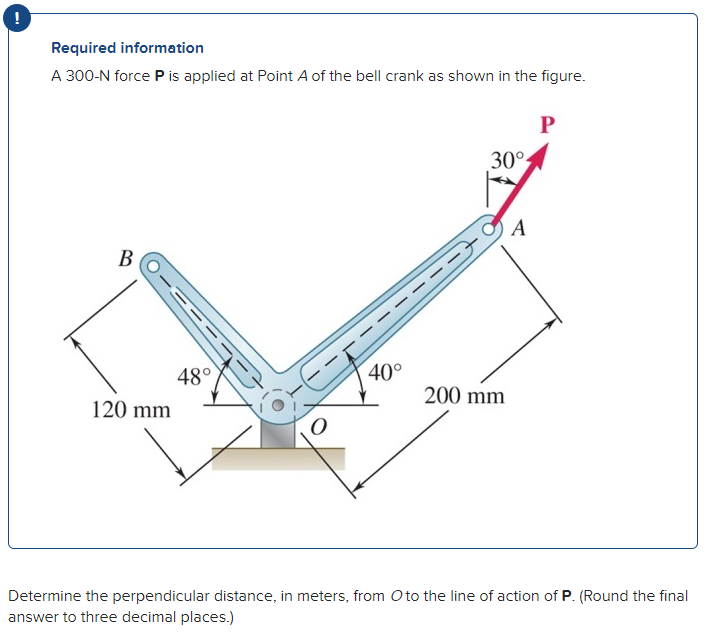

A 300-N force P is applied at Point A of the bell crank as shown in the figure.
Determine the perpendicular distance, in meters, from O to the line of action of P.(Round the final
answer to three decimal places.)
! Required information A 3 0 0 - N force P is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
