Question: Required Information A 5 - In . - diameter pipe is supported every 9 ft by a small frame consisting of two members as shown.

Required Information

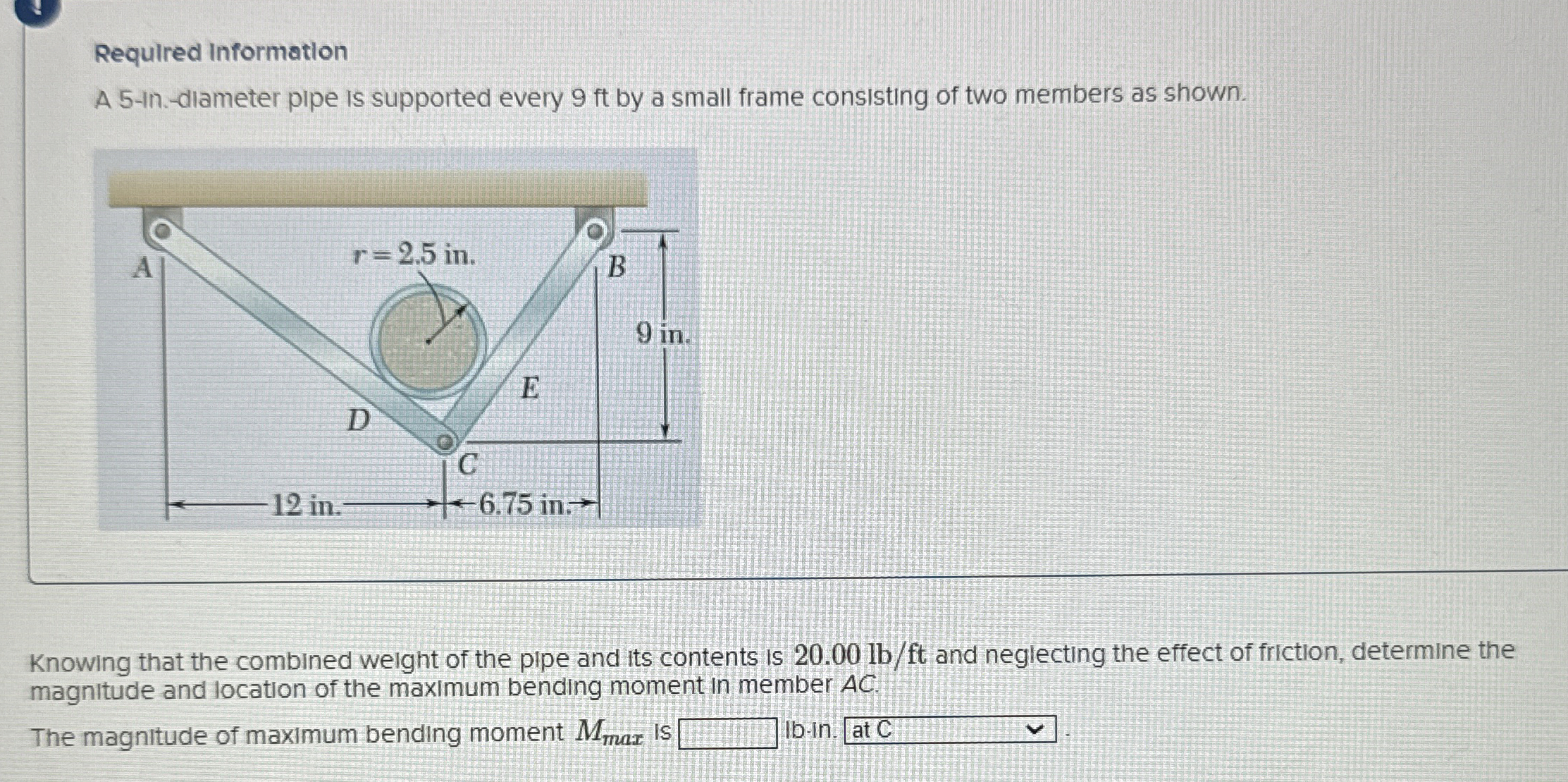

A 5-In.-diameter pipe is supported every 9 ft by a small frame consisting of two members as shown.
Knowing that the combined weight of the pipe and its contents is 20.00lbft and neglecting the effect of friction, determine the magnitude and location of the maximum bending moment in member AC.
The magnitude of maximum bending moment Mmax is
IIb.In. :
Required Information A 5 - In . - diameter pipe

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
