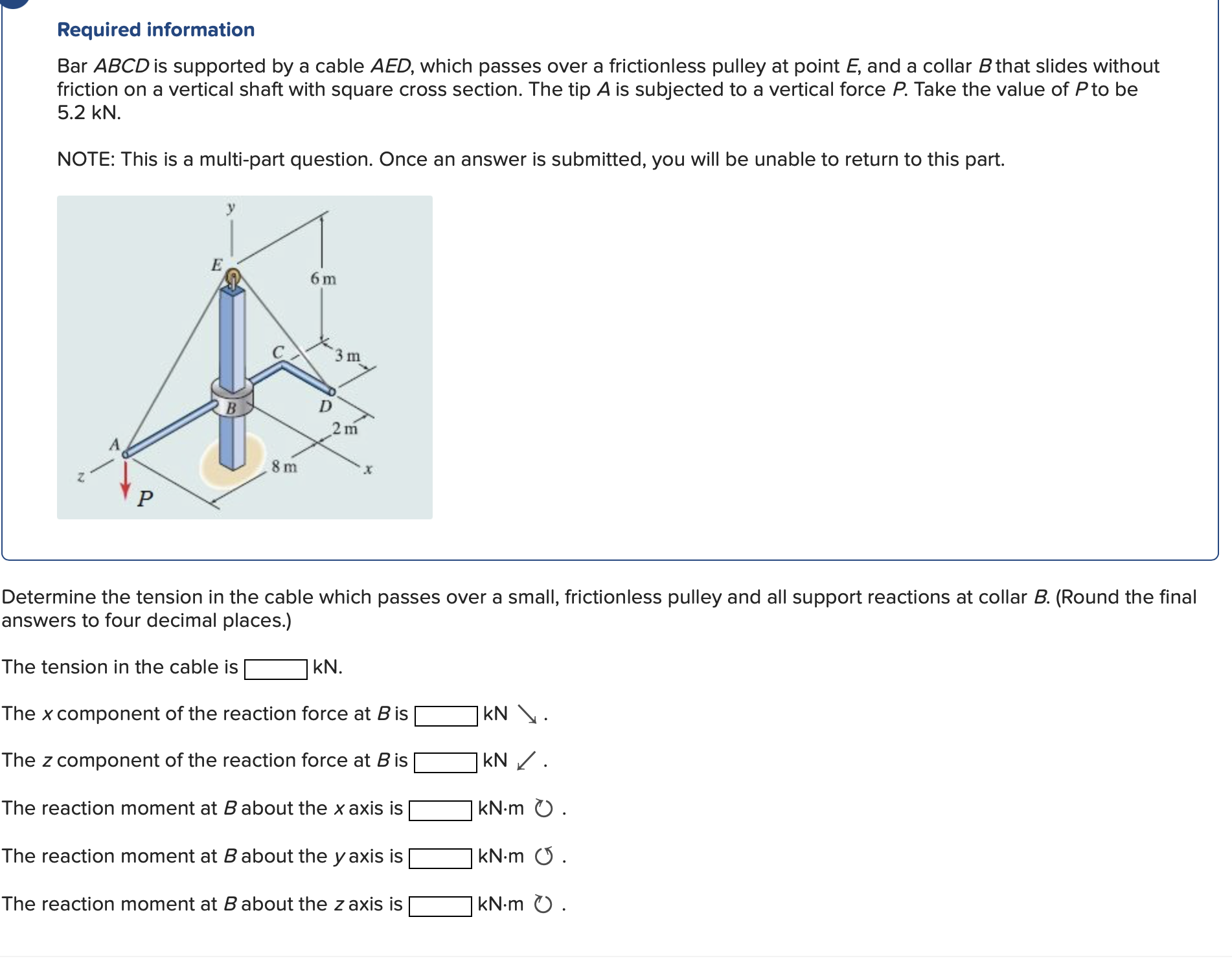

Bar ABCD is supported by a cable AED, which passes over a frictionless pulley at point E$,$ and a collar B that slides without

friction on a vertical shaft with square cross section. The tip A is subjected to a vertical force P$.$ Take the value of P to be

$5\mathrm{.}2$ kN $.$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Determine the tension in the cable which passes over a small, frictionless pulley and all support reactions at collar B$.($Round the final

answers to four decimal places.$)$

The tension in the cable is kN $.$

The x component of the reaction force at B is

The z component of the reaction force at B is

The reaction moment at B about the x axis is

The reaction moment at B about the y axis is

kN$.$

kN$.$

The reaction moment at B about the z axis is

kN$*$m U$.$

kN$*$m$$

kN$*$m U$.$
