Required information

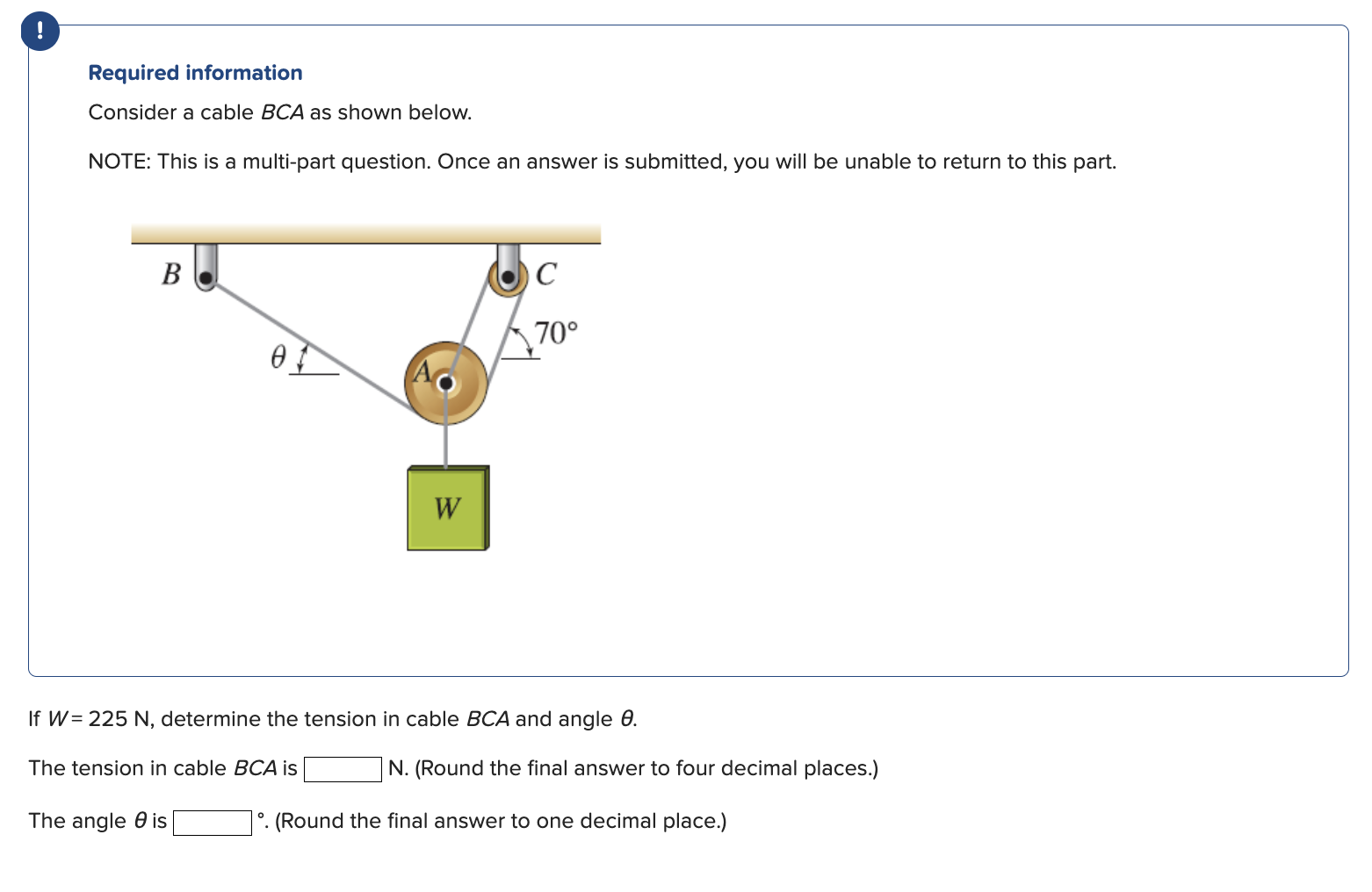

Consider a cable BCA as shown below.

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

If $W=225N,$ determine the tension in cable BCA and angle $.$

The tension in cable BCA is

N$.($Round the final answer to four decimal places.$)$

The angle $$ is

$.($Round the final answer to one decimal place.$)$Consider a cable BCA as shown below.

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

On a fixed upper horizontal support, a shackle B and pulley C are attached. The lower pulley A supports the weight W using cables.A shackle B on the left, and pulley C on the right are attached to the horizontal support. The cable is fixed to point B and wrapped over lower pulley A$,$ wrapped over pulley C$,$ and attached to the center point of pulley A$.$ The weight W is attached to the center point of pulley A using cable. The cable AB is slanted up to the left at an angle theta from the horizontal axis. Cable AC is at an angle of $70$ degrees from the horizontal axis.

If W $=225$ N$,$ determine the tension in cable BCA and angle $\backslash$theta $.$

The tension in cable BCA is

N$.($Round the final answer to four decimal places.$)$

The angle $\backslash$theta is

$\backslash$deg $.($Round the final answer to one decimal place.$)$
