Question: Required information Consider the beam and loading shown. If a = 8 in , b = 8 . 0 in , c = 1 in

Required information

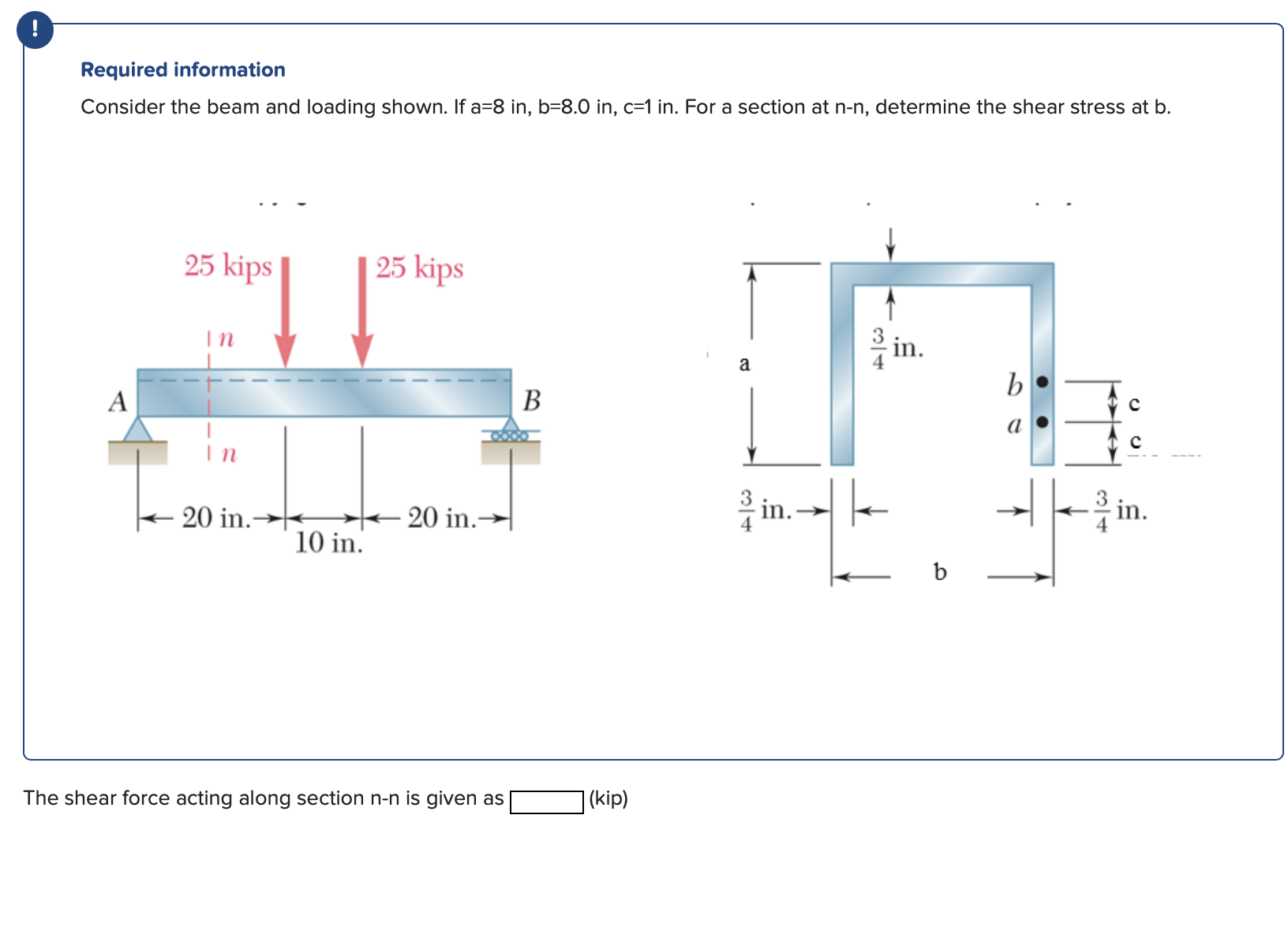

Consider the beam and loading shown. If a=8 in,b=8.0 in,c=1 in. For a section at n-n, determine the shear stress at b. The shear force acting along section n-n is given as (kip)
Required information Consider the beam and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
