Question: ! Required information Consider the beam and loading with M = 1 8 k N m shown in the figure. Determine the magnitude and location

!
Required information

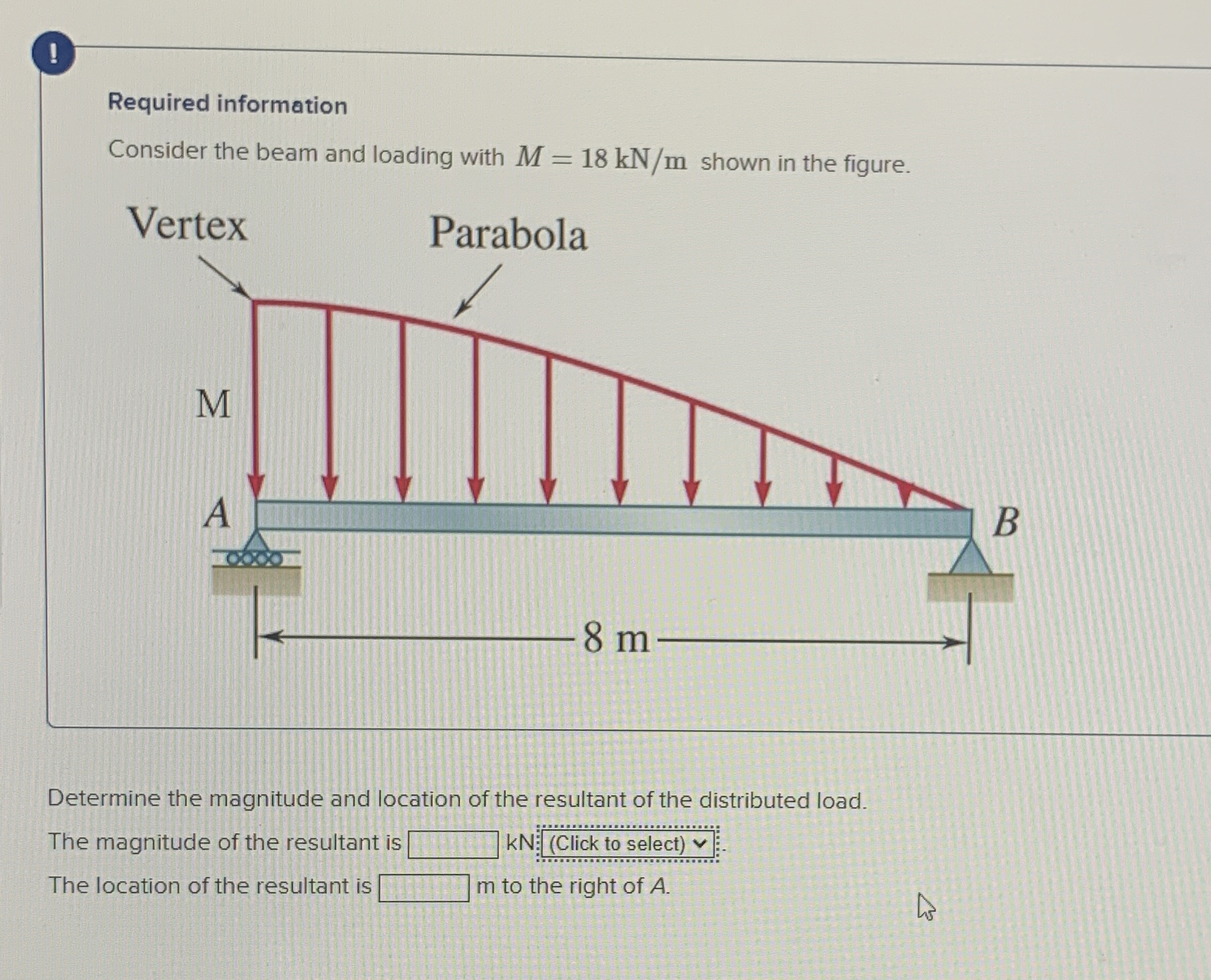

Consider the beam and loading with M=18kNm shown in the figure.
Determine the magnitude and location of the resultant of the distributed load.
The magnitude of the resultant is kN: The location of the resultant is m to the right of A.
! Required information Consider the beam and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
