Question: ! Required Information Consider the given figure. Glven: P = 7 . 0 0 k N and Q = 1 4 k N . A

!
Required Information
Consider the given figure. Glven: P=7.00kN and Q=14kN.

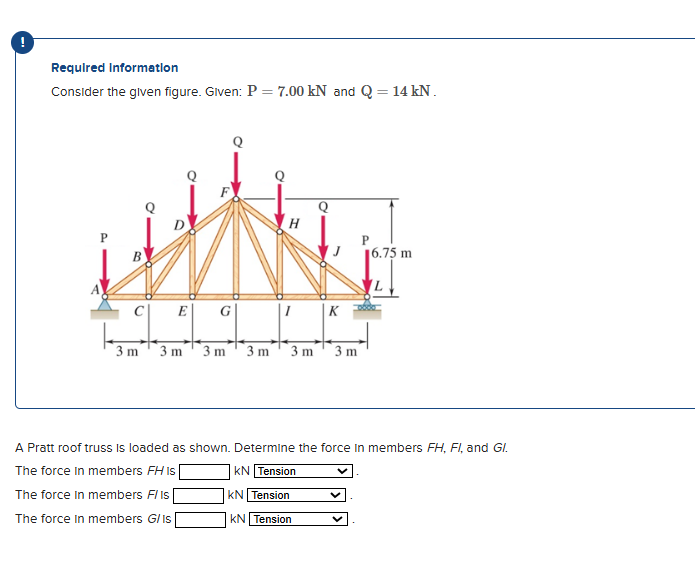

A Pratt roof truss is loaded as shown. Determine the force in members FH,FI, and GI.
The force in members FH is
The force in members F? is
kN
].
The force in members G? Is
].
kN |
].
