Required Information

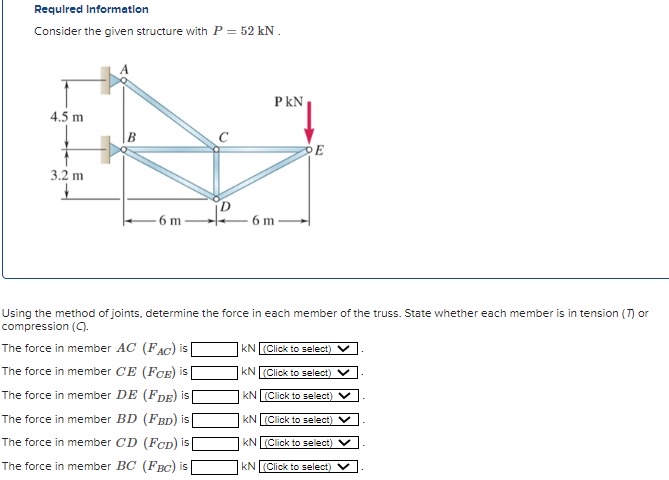

Consider the given structure with $P=52kN.$

Using the method of joints, determine the force in each member of the truss. State whether each member is in tension $(T)$ or compression $(C.$

The force in member $AC(F_{AC})$ is kN $($Click to select$)V.$

The force in member $CE(F_{CE})$ is

kN $($Click to select$)V.$

The force in member $DE(F_{DE})$ is

kN $$

The force in member $BD(F_{BD})$ is

kN $$

The force in member $CD(F_{CD})$ is

kN $$

The force in member $BC(F_{BC})$ is

kN $($Click to select$)V.$
