Question: ! Required information Consider the oscillator circuit given below, where L = 0 . 8 m H and R = 6 8 k . NOTE:

!
Required information

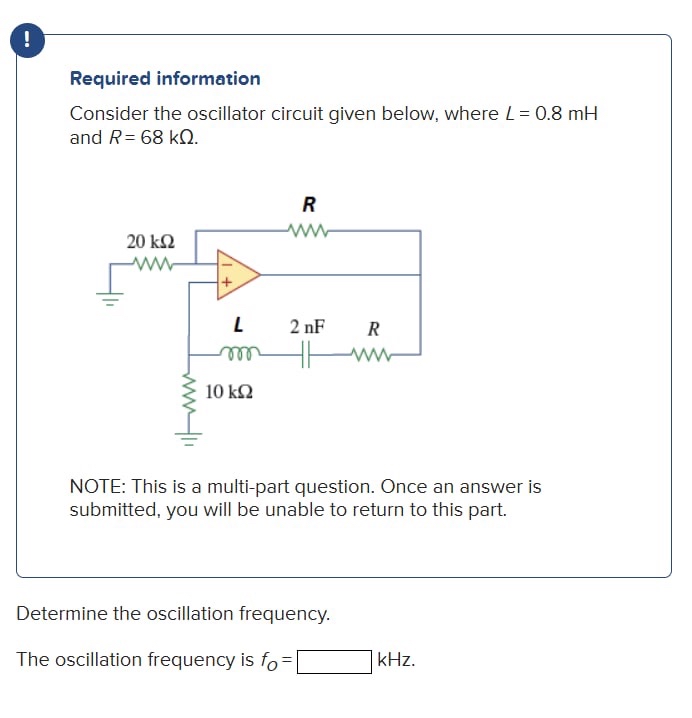

Consider the oscillator circuit given below, where L=0.8mH and R=68k.
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part.
Determine the oscillation frequency.
The oscillation frequency is fO=,kHz.
! Required information Consider the oscillator

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
