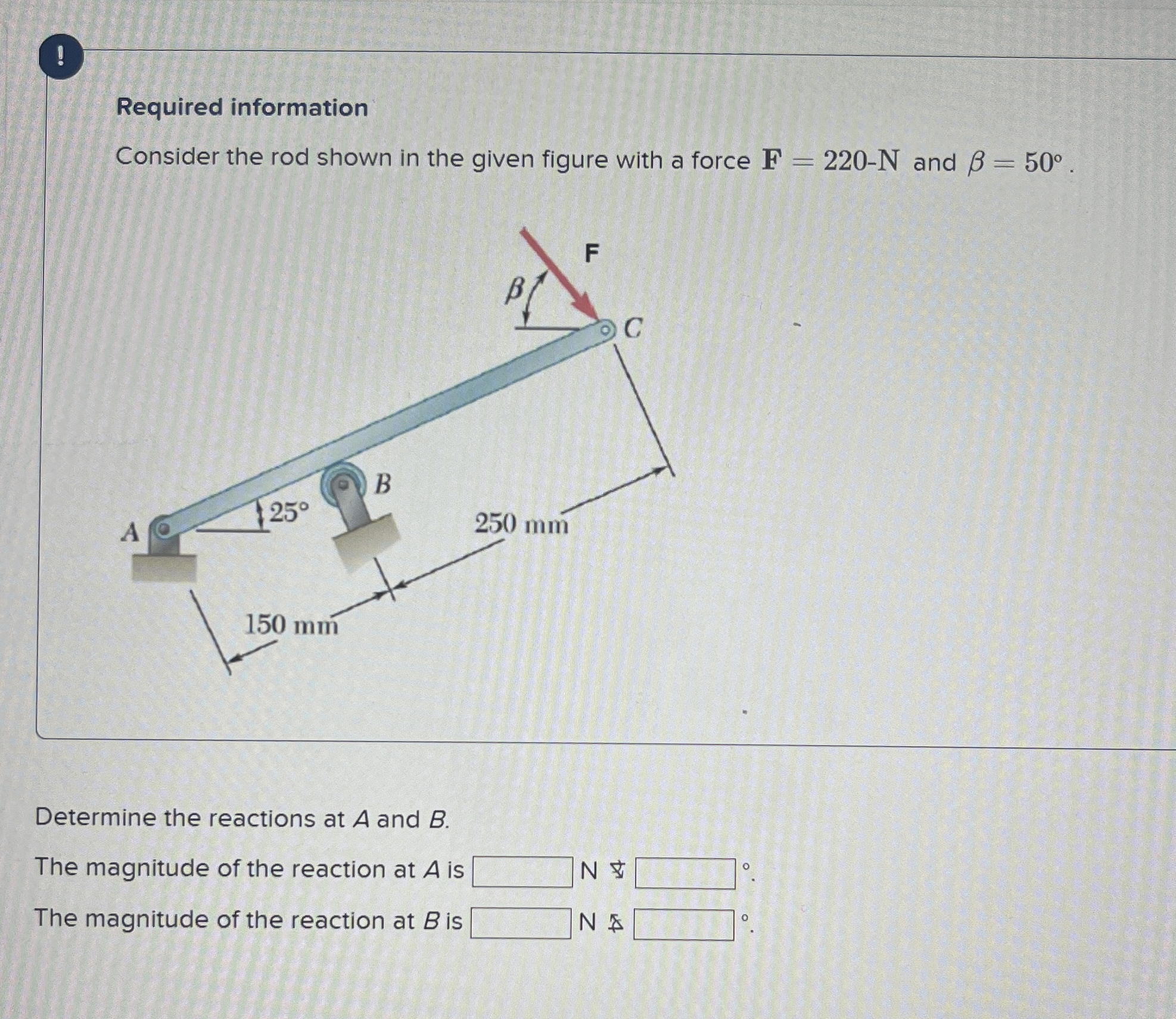

Question: Required information Consider the rod shown in the given figure with a force F = 2 2 0 - N and = 5 0 .

Required information
Consider the rod shown in the given figure with a force F=220-N and =50.
Determine the reactions at A and B.
The magnitude of the reaction at A is
N
The magnitude of the reaction at B is
N&
Required information Consider the rod shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
